12-60W I IP54

L03016 Down Lighting    IP54

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing downlight offer uniform distribution . 55° COB LED and reflector optic, I 110° OSRAM SMD ， Visual comfort ，The basic model comes in white or black color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with metal springs. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. IP RATED, it can be used in bathroom or other damp locations.

TECHICAL DATA

  • 900-5000lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling Recessed

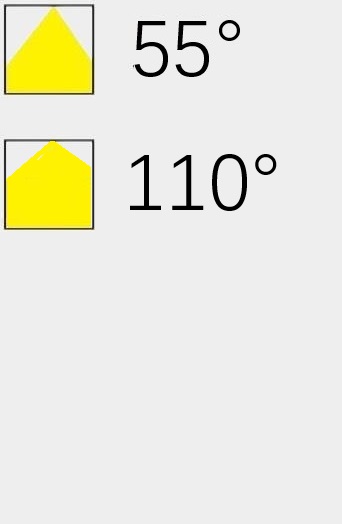

  • 55° COB LED CRI90 3SDCM I 110° OSRAM SMD

Product is Europe Standard & CE Certificate.

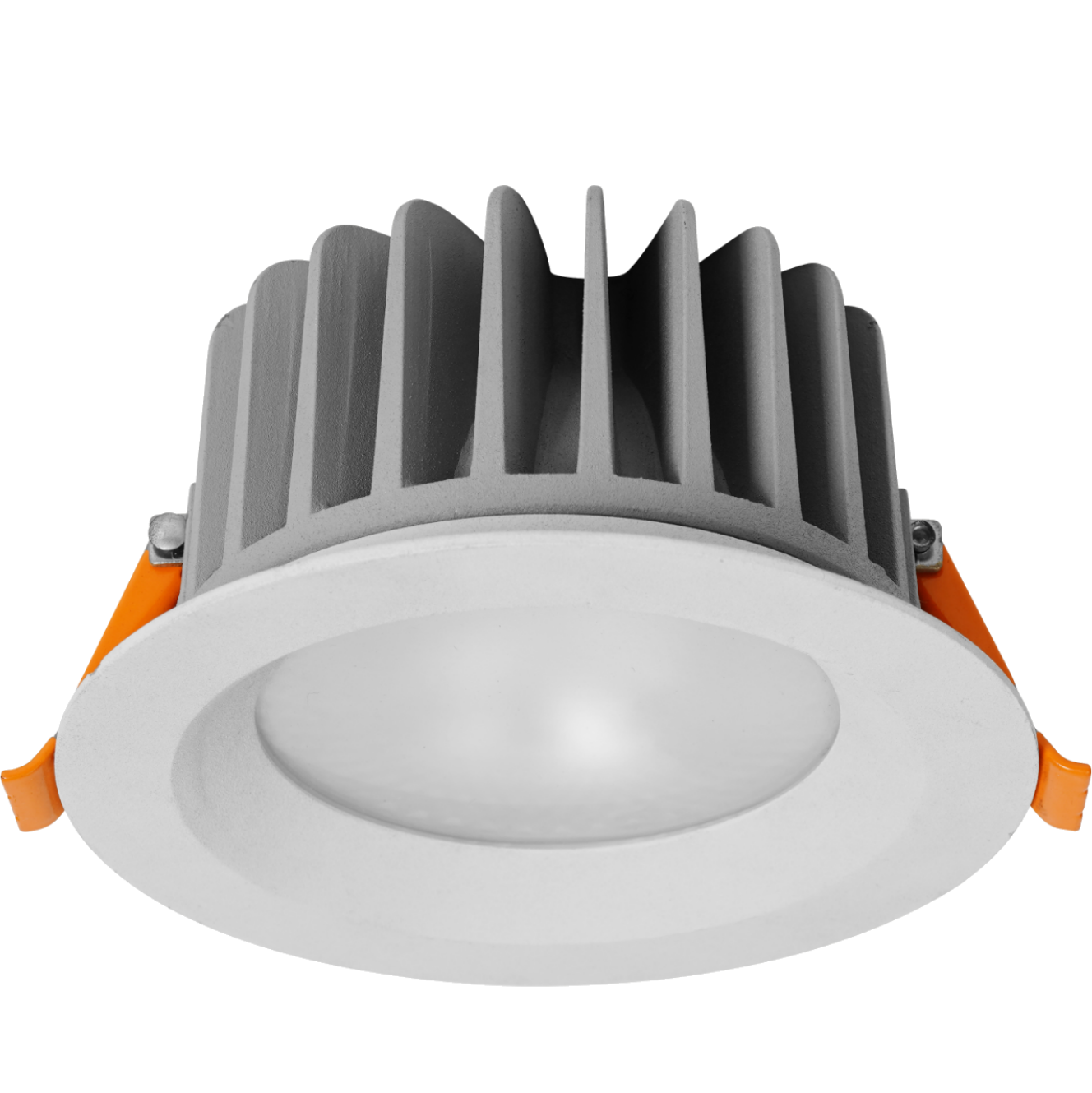

INTERIOR LED RECESSED DOWNLIGHT

L03016

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling wall recessed I Trim

400-600mm cable with quick connector

Citizen COB LED 3SDCM CRI90 I Osram SMD

Flicker Free I Remote LED Driver version.

Recessed light source I High level of visual comfort

0/1-10V I Triac I DALI dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

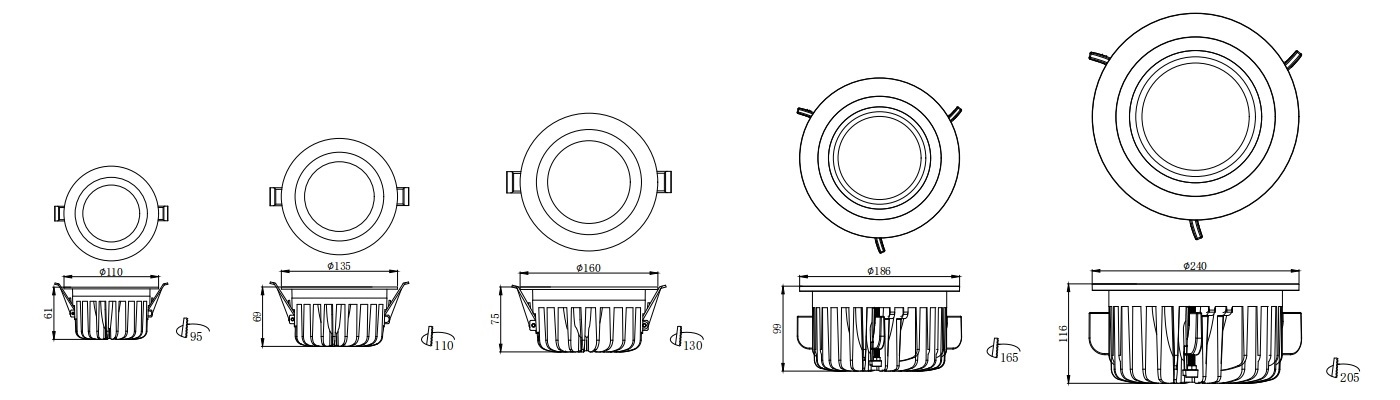

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03016-10 10W 900lm
110xH61mm
95mm		 250mA
L03016-15 15W 1350lm
135xH60mm
110mm		 350mA
L03016-25 25W 2300lm
160xH75mm
130mm		 600mA
L03016-40 40W 3600lm
186xH99mm
165mm		 1000mA
L03016-55 55W 5000lm
240xH116mm
205mm		 1300mA

FEATURES

The fixing downlight offer uniform distribution . 55° COB LED and reflector optic, I 110° OSRAM SMD ， Visual comfort ，The basic model comes in white or black color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with metal springs. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. IP RATED, it can be used in bathroom or other damp locations.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   350mA
25W   600mA
40W   1000mA
55W   1300mA

Download
