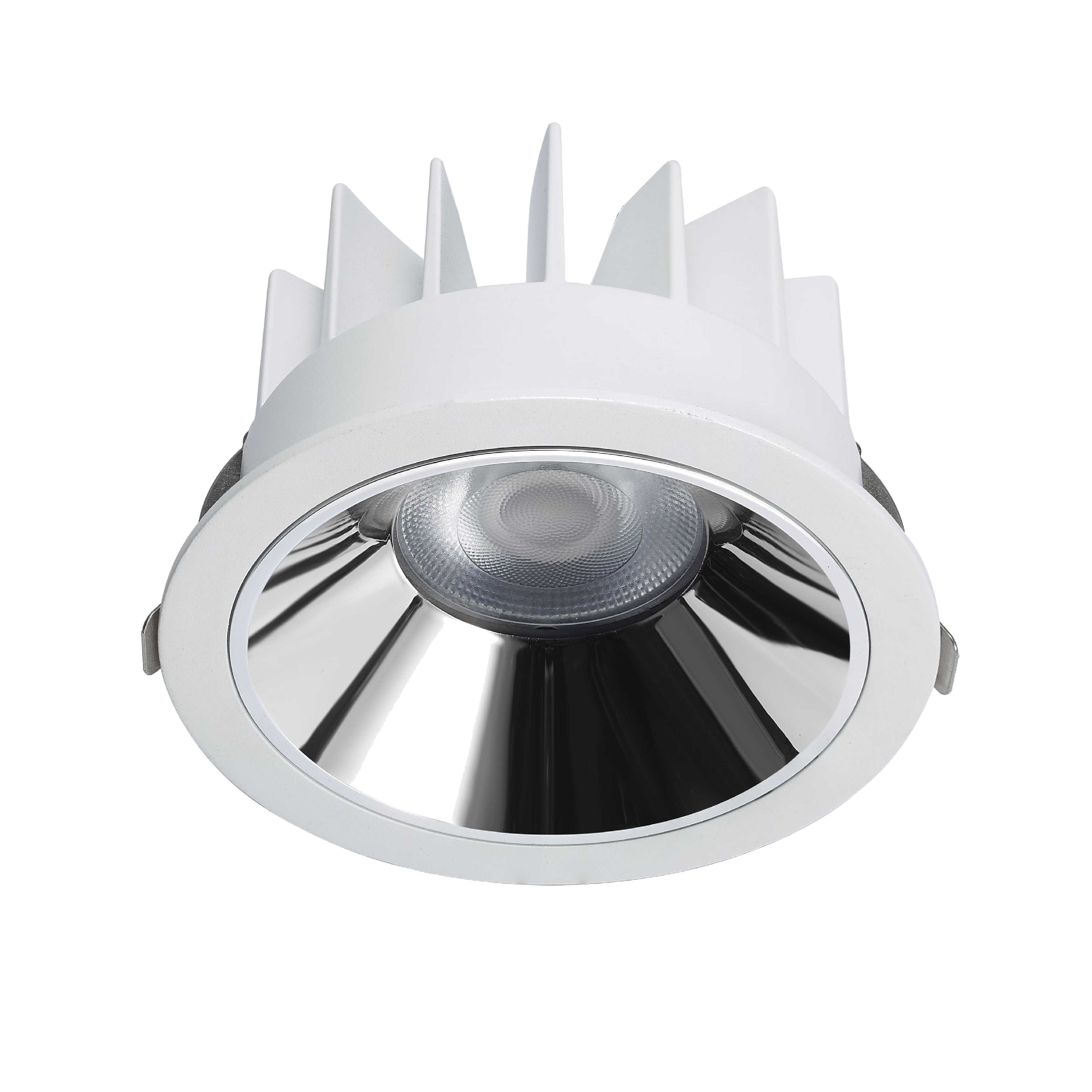

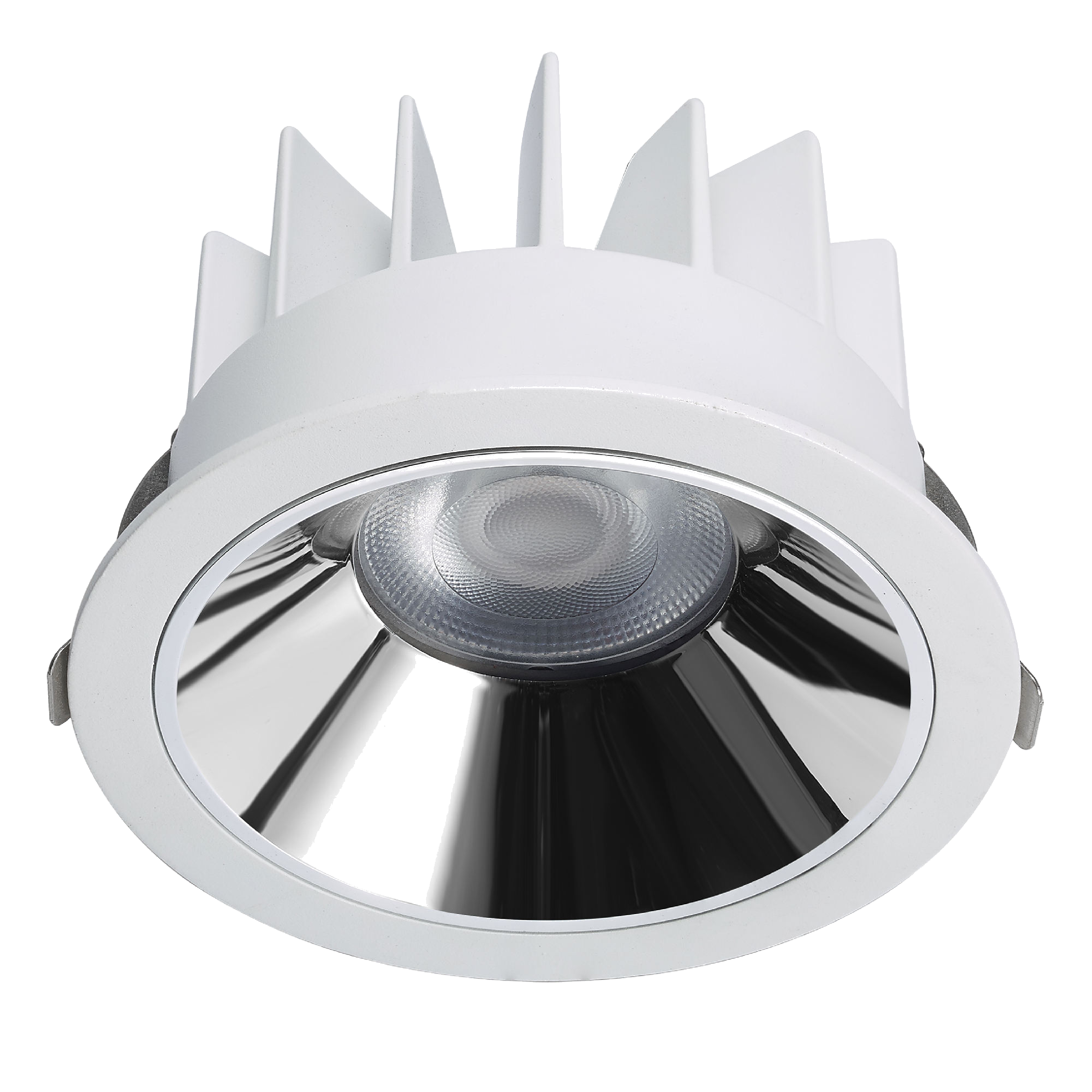

L03701 Spotlight IP65

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

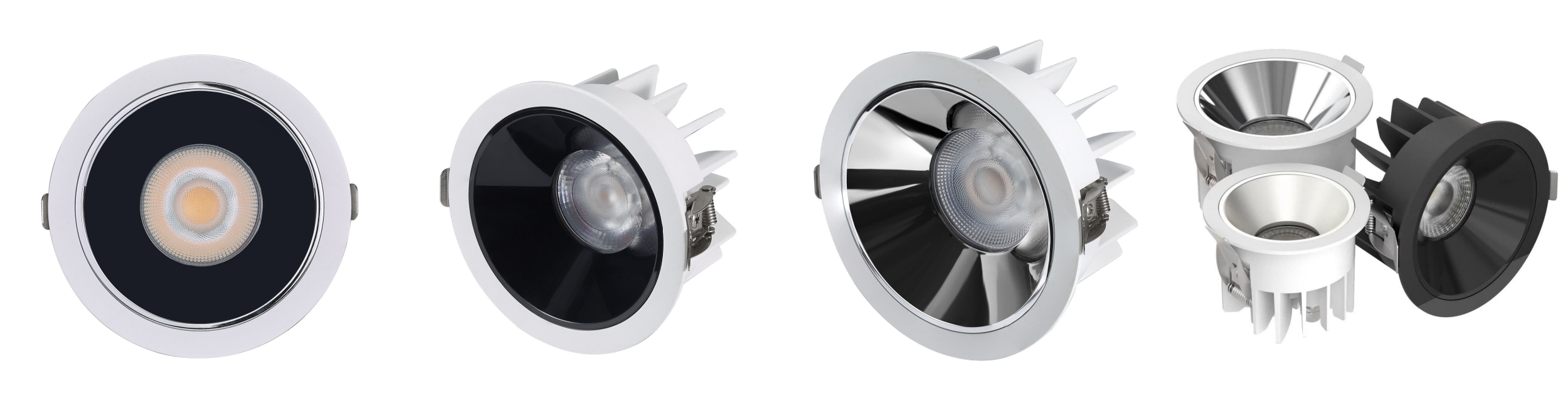

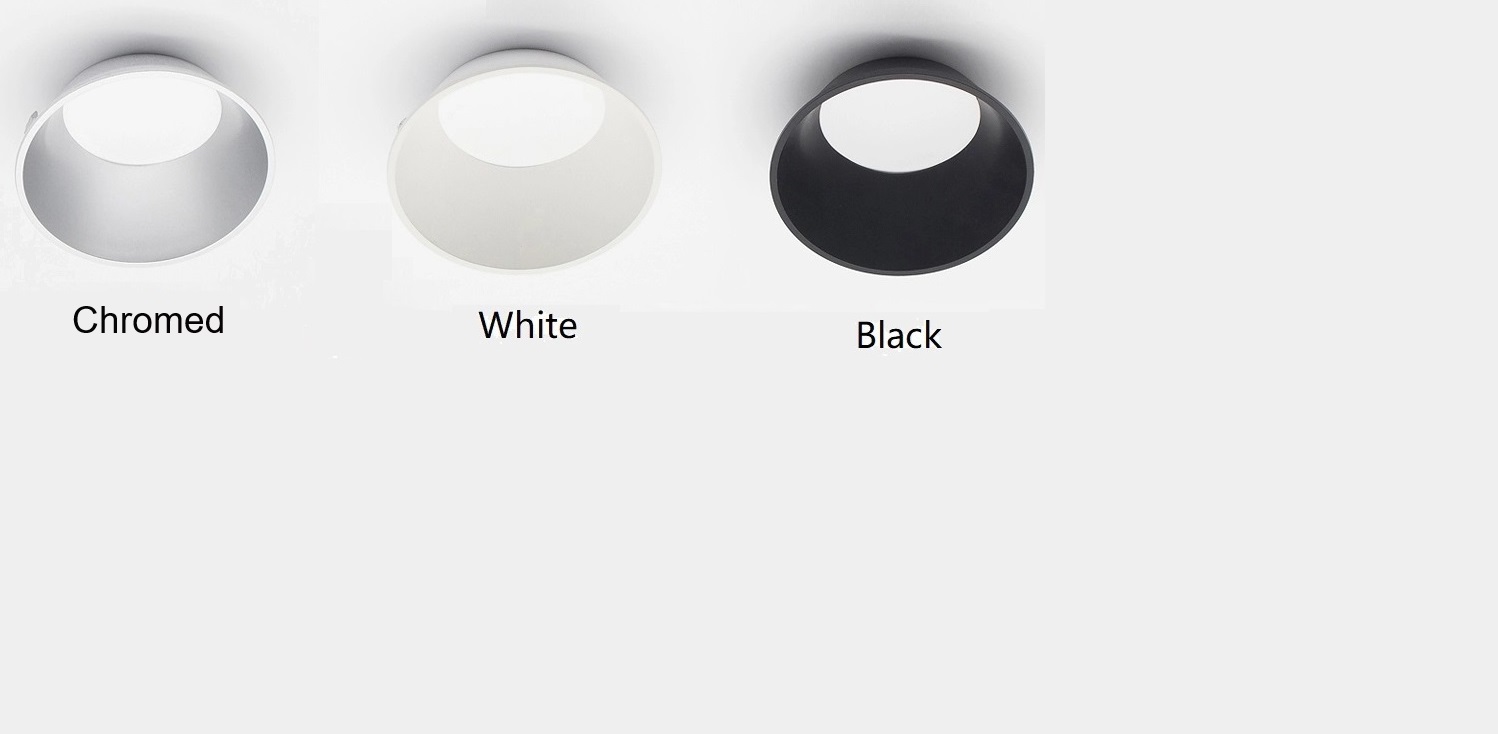

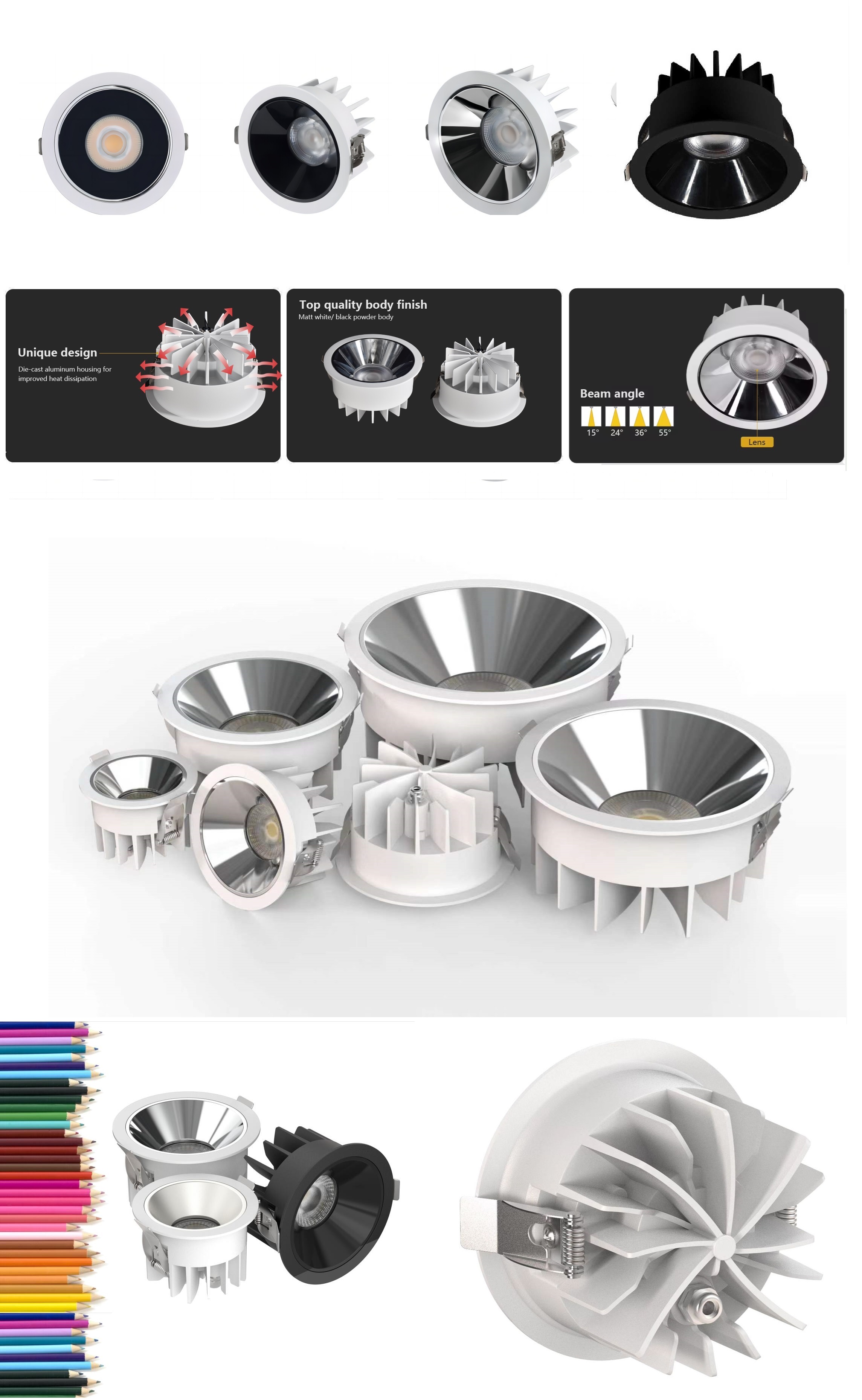

The fixing spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source . available for five different output beams 15/24/36/55°. The decorative secondary optic available in multiple color finishing, Black I White I Chromed. The basic model comes in white or black color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. IP RATED, it can be used in bathroom or other damp locations.

TECHICAL DATA

1100-4500lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DTW dimming
Ceiling Recessed
COB LED CRI90 3SDCM I 90° OSRAM SMD

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03701

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling wall recessed I

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free I Remote LED Driver version.

Deeply recessed light source I High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

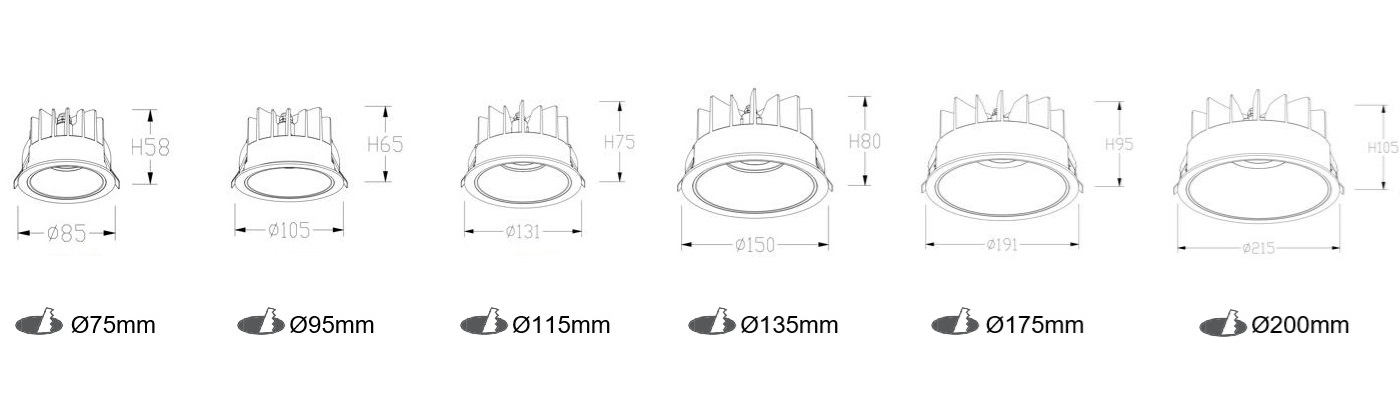

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03701-12	12W	1100lm	85xH54mm	75mm	300mA


L03701-18	18W	1620lm	105xH65mm	95mm	450mA


L03701-30	30W	2700lm	131xH75mm	115mm	750mA


L03701-38	38W	3500lm	150xH80mm	135mm	950mA


L03701-50	50W	4500lm	191xH95mm	175mm	1250mA

FEATURES

The fixing spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source . available for five different output beams 15/24/36/55°. The decorative secondary optic available in multiple color finishing, Black I White I Chromed. The basic model comes in white or black color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. IP RATED, it can be used in bathroom or other damp locations.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
12W 300mA 18W 450mA 30W 750mA 38W 950mA 50W 1250mA
