Ø30 I Ø40 I Ø50 I Ø65 NFC DALI

L09114 Spotlight    IP20

Aluminium material and powder coating. - lens version. -Flicker-Free-

Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a special adaptor integrated NFC Dali dimm Driver. Achieved DALI dimmable, An ideal solution for accent lighting. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI>90, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 550-1700lm

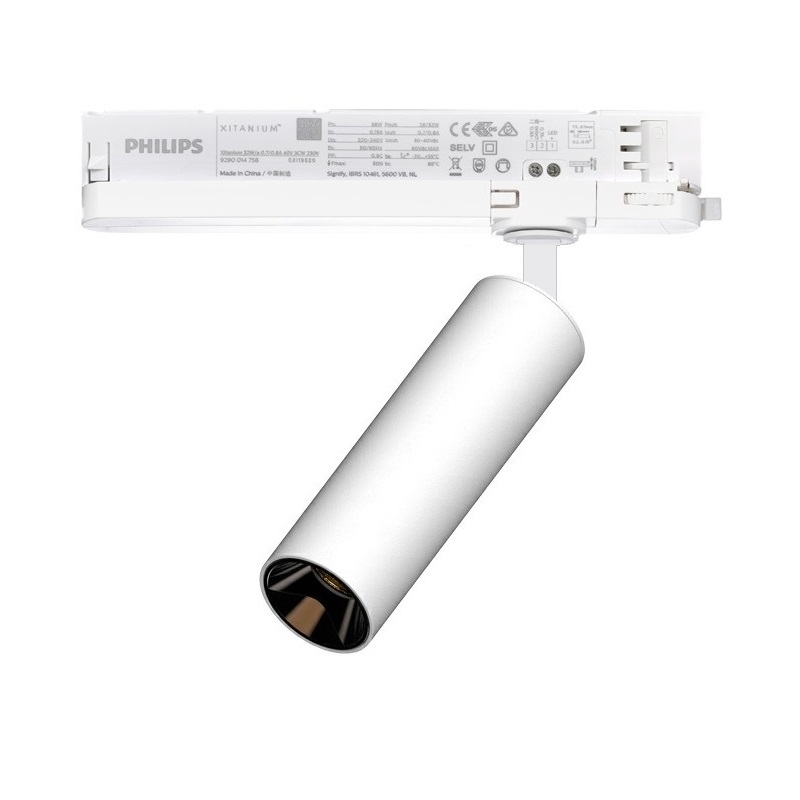

  • Integrated LED Driver NFC
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V dimming
  • 3-phase Track or DALI Track Rails
  • Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.

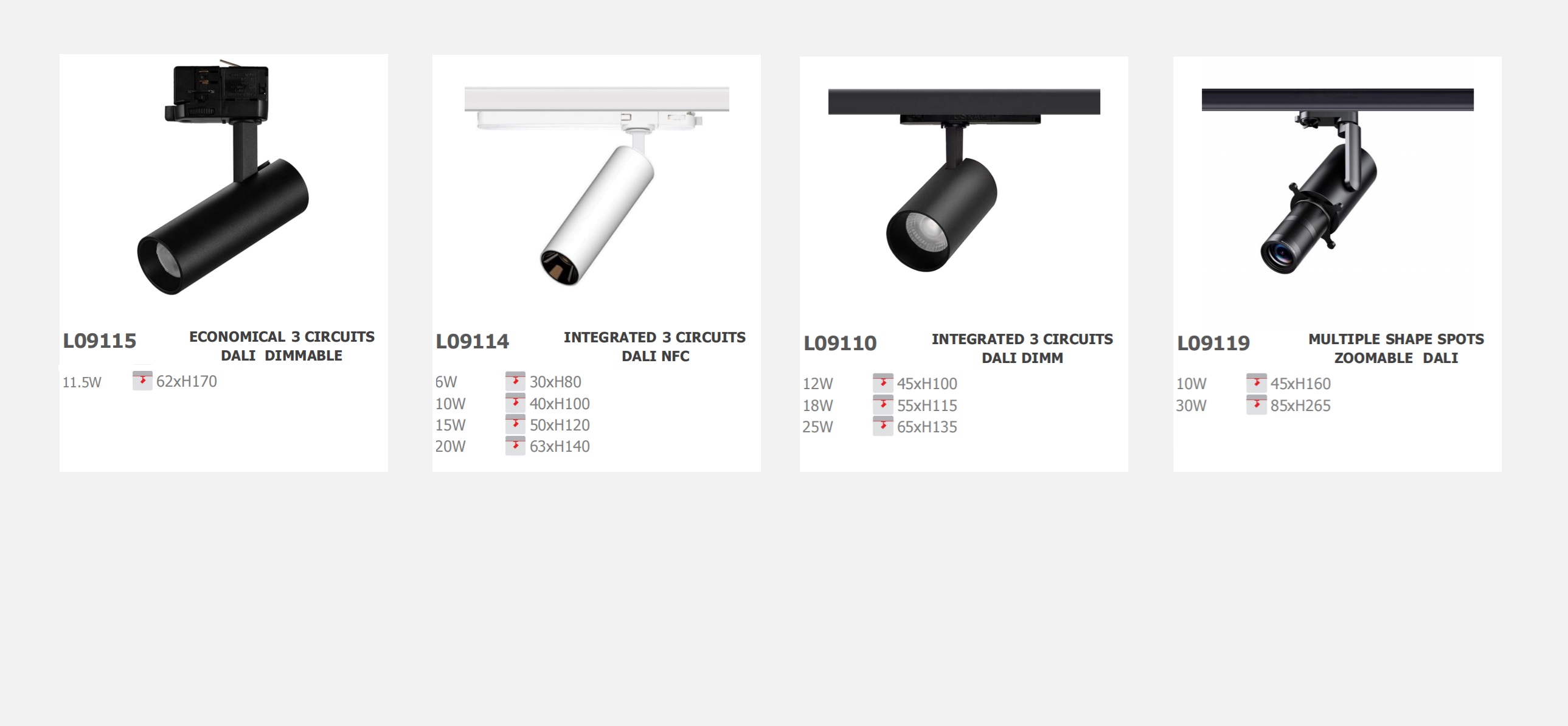

INTERIOR LED TRACK SPOTLIGHT

L09114

IP20

CLASS III

3-phase Track or DALI Track Rails

Aluminium lighting fixture, powder coated.

Flicker Free I UGR<19

Eyes friendly CE certificate RoHS standard

CRI90 3SDCM famous brand COB LED

Triac I 0/1-10V I DALI dimmable

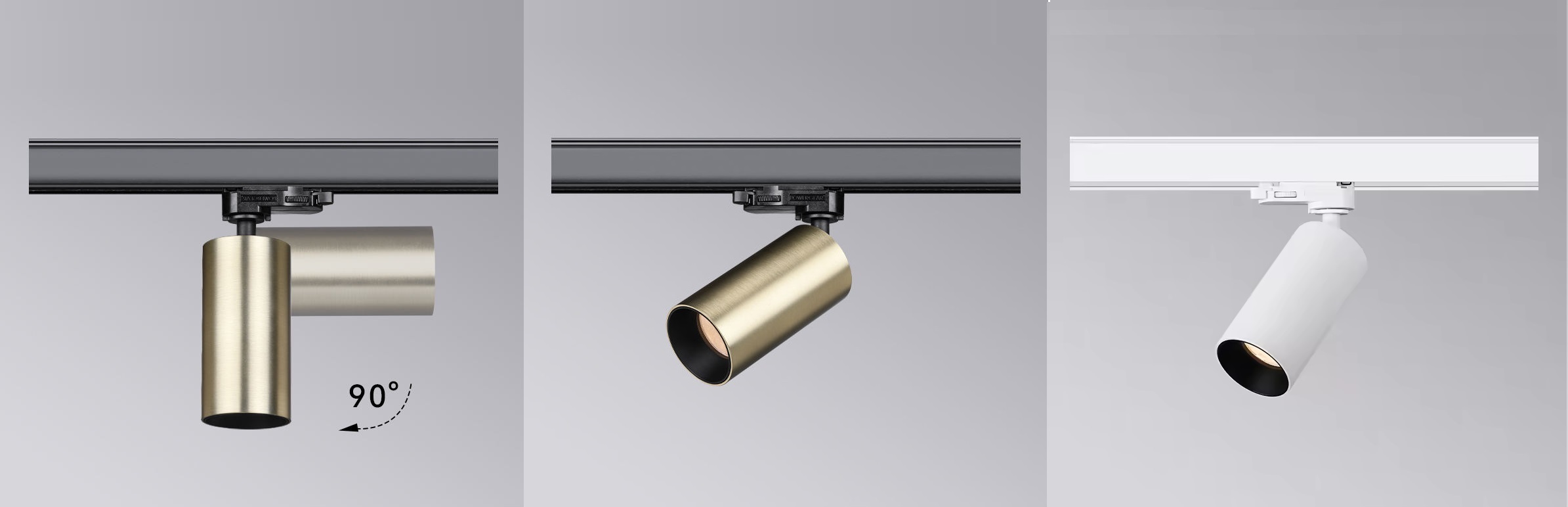

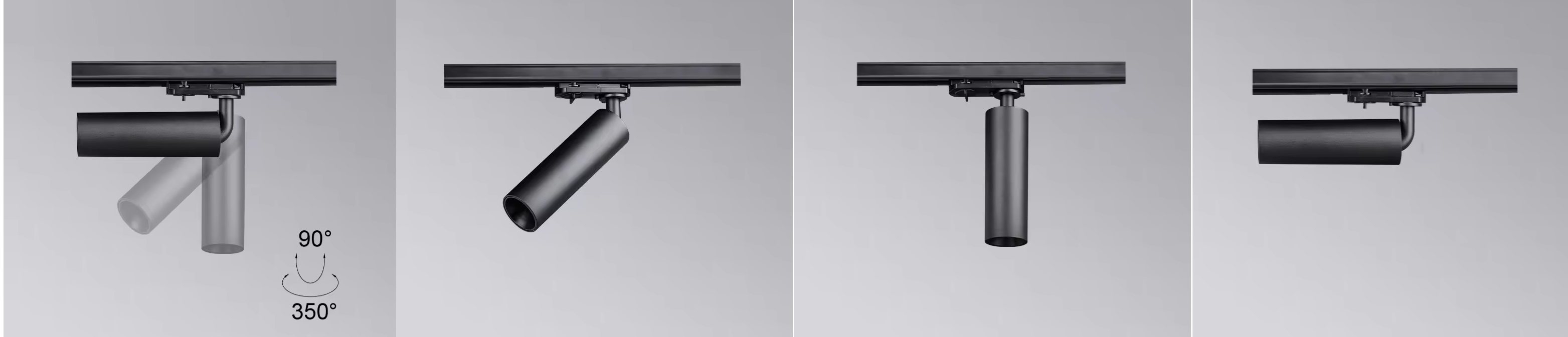

360°rotation and 90° adjustable

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

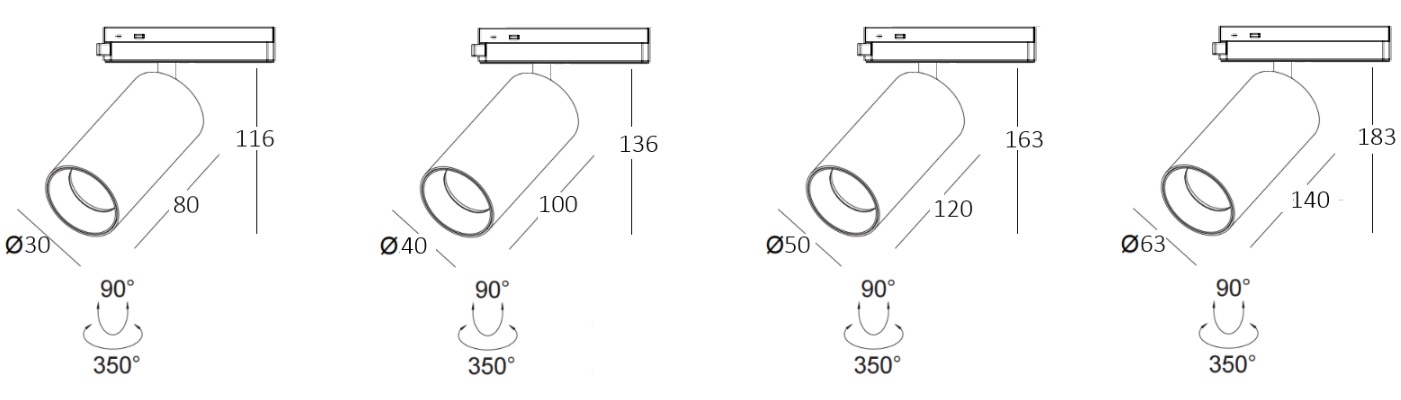

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09114-6 6W 550lm
30x80xH116mm
mm
150mA
L09114-10 10W 900lm
40x100xH136mm
mm
250mA
L09114-15 15W 1300lm
50x120xH163mm
mm
350mA
L09114-20 20W 1700lm
63x140xH183mm
mm
500mA

FEATURES

Track spotlight, aluminium lighting fixture, Integrated cooling system to ensure the spotlight long lifetime. Achieved DALI dimmable(NFC), An ideal solution for accent lighting. The fixture allows 360°rotation and 90° adjustable make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM CRI>90, The standard product comes in Black or White. Customized power changes are possible depending on the request and the quantity.

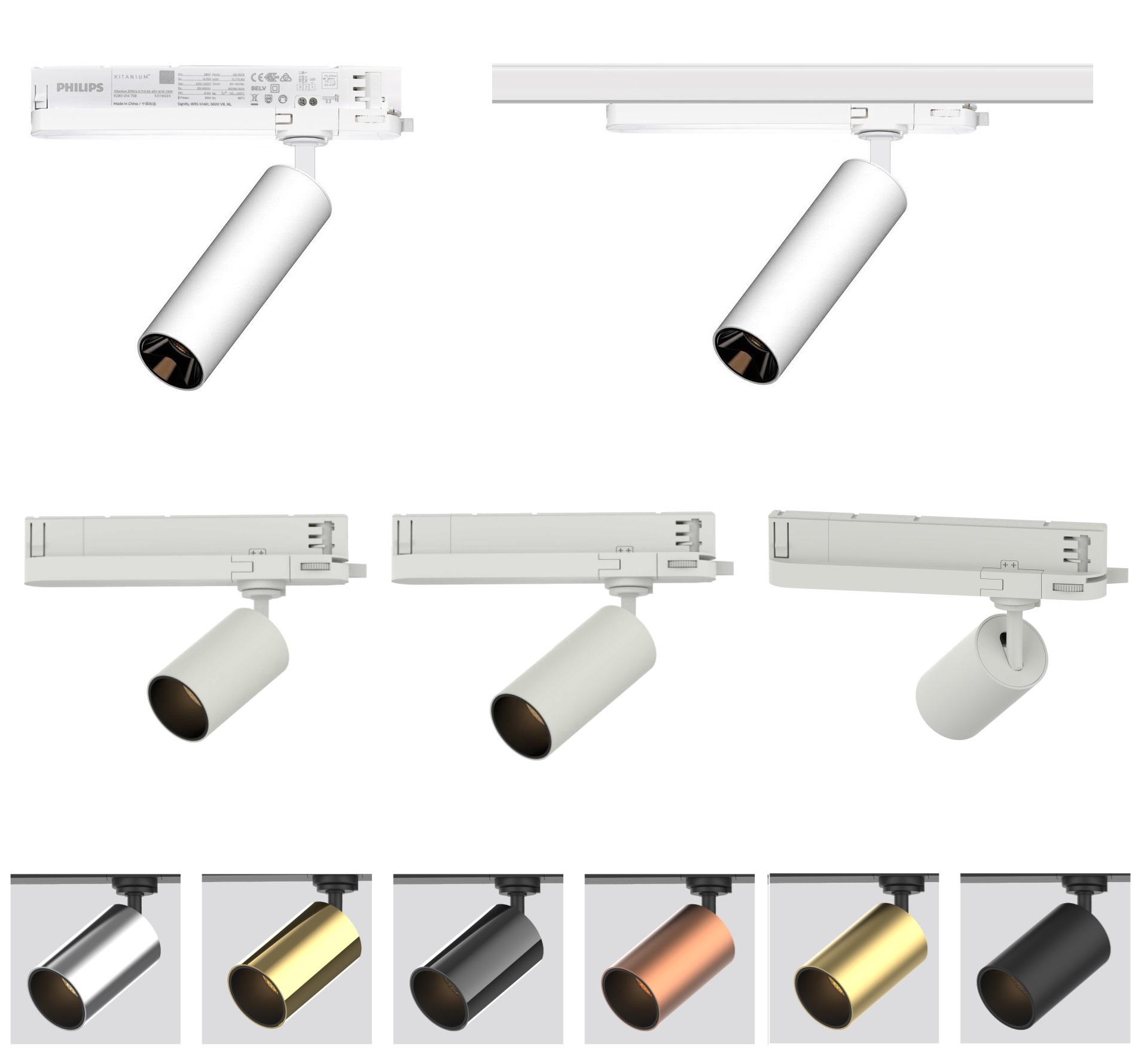

Integrated LED Driver NFC Accessoires Beam Angle Color Temperature Finishes
6W   150mA
10W   250mA
15W   350mA
20W   500mA

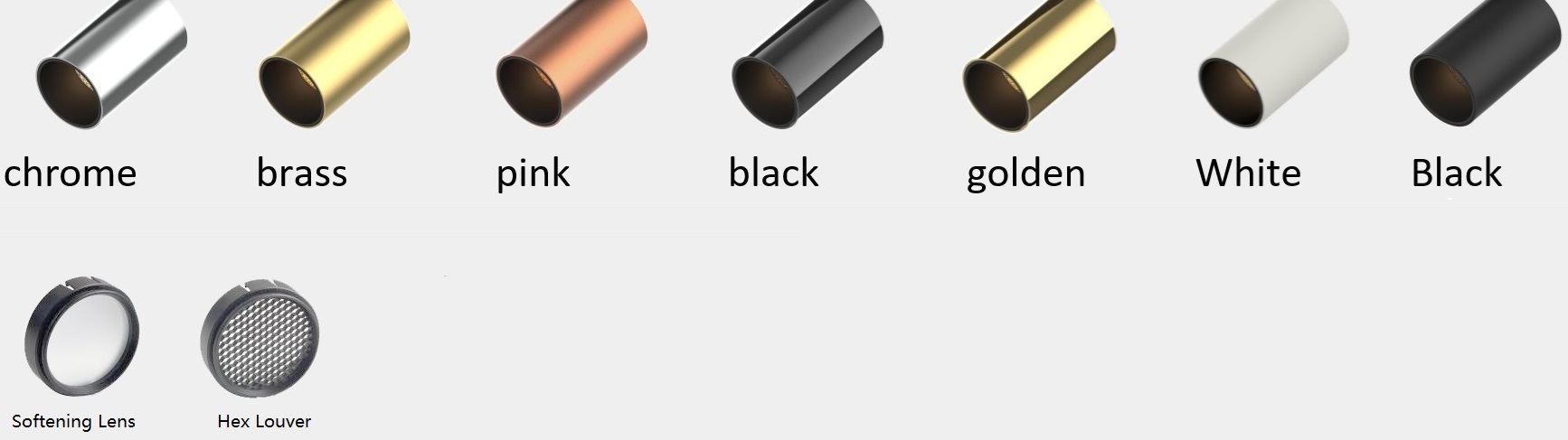

High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.





>
