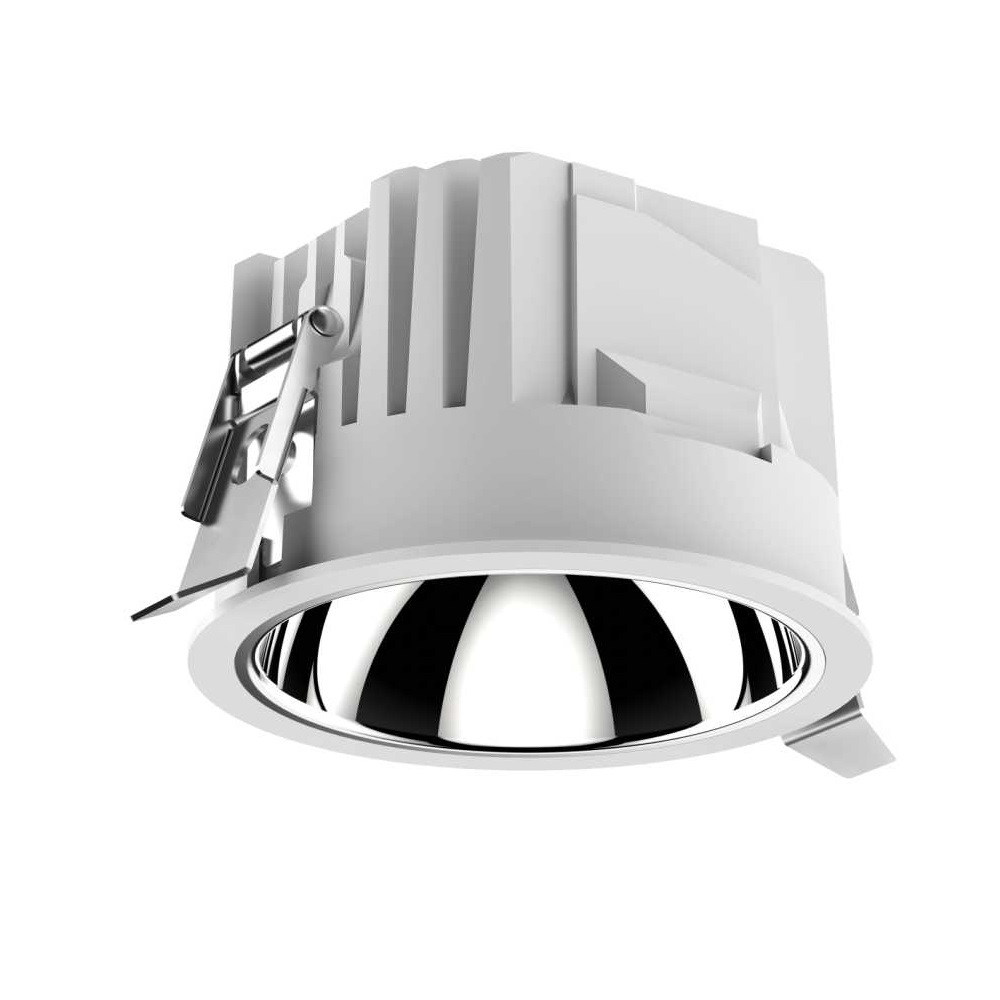

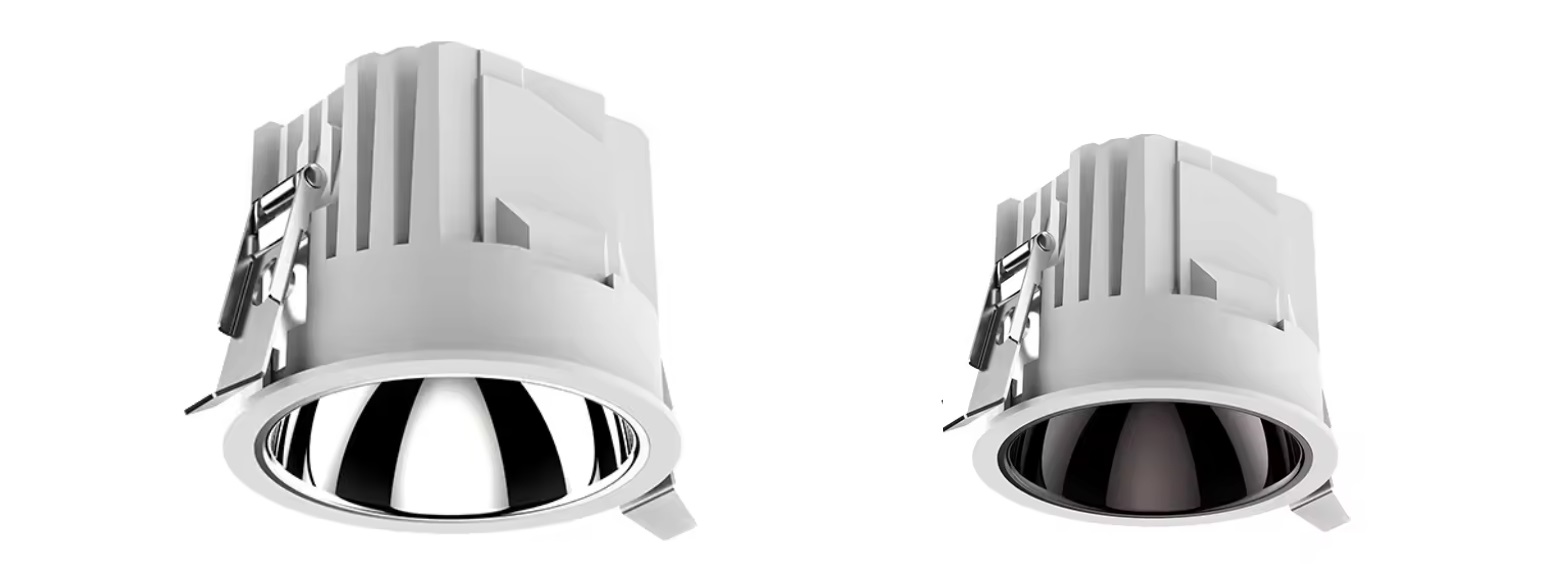

L06754 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

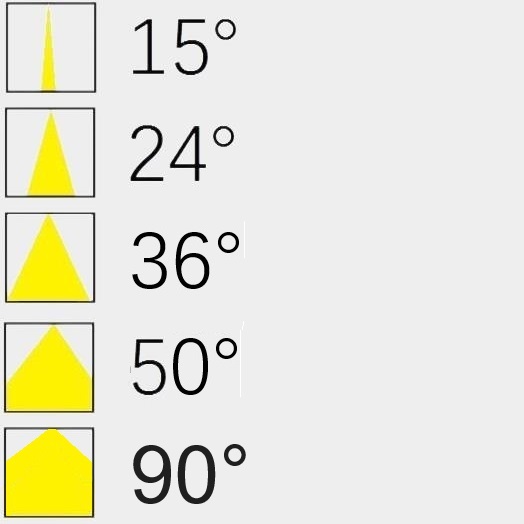

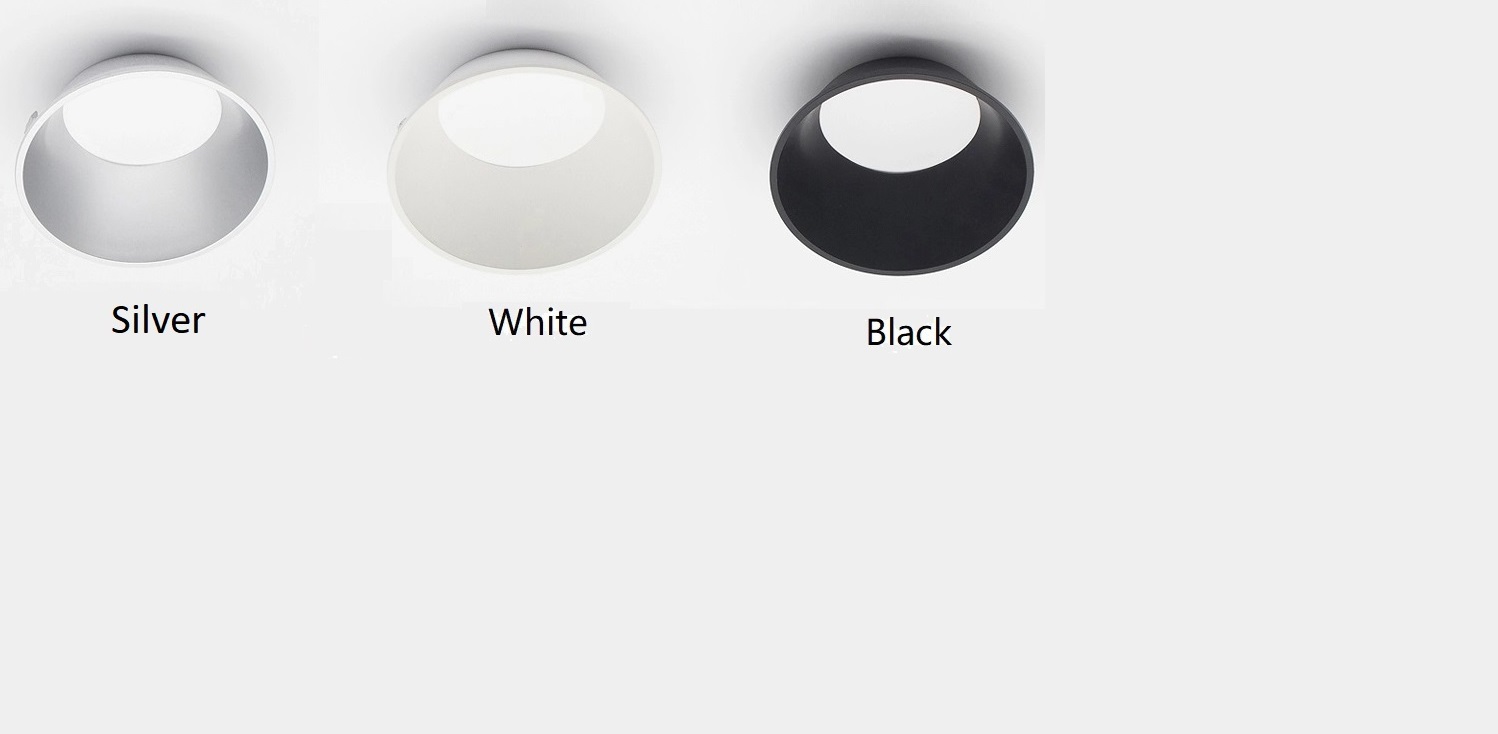

The fixing spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source UGR<19. available for five different output beams 15/24/36/50° AND 90° SMD. The metal decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

1350-3500lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DTW dimming
Ceiling Recessed
COB LED CRI90 3SDCM I 90° OSRAM SMD

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06754

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling wall recessed I

400-600mm cable with quick connector

COB LED 3SDCM I CRI90 I 90° OSRAM SMD

Flicker Free I Remote LED Driver version.

Deeply recessed light source I High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

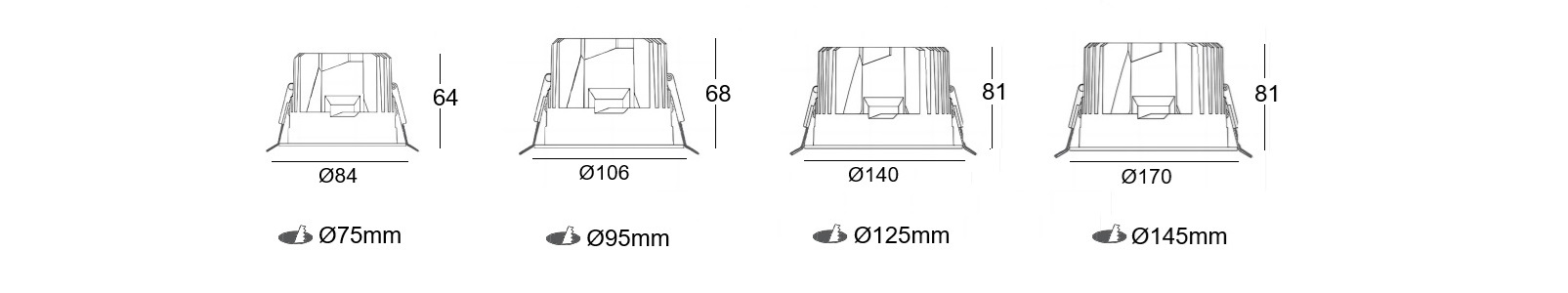

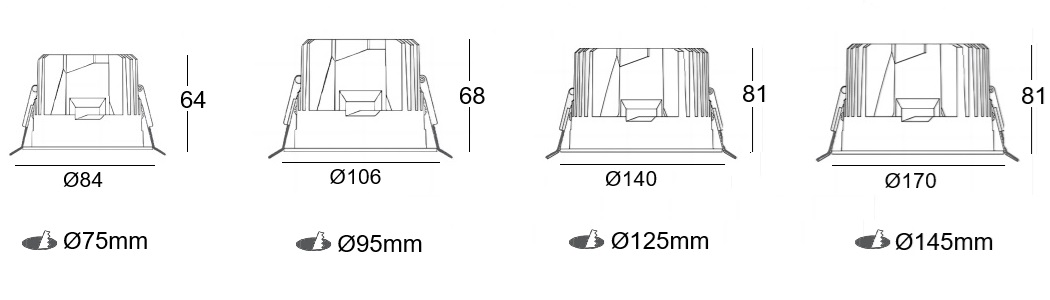

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06754-15	15W	1350lm	84xH65mm	75mm	350mA


L06754-20	20W	1800lm	106xH68mm	95mm	500mA


L06754-30	30W	2700lm	140xH81mm	125mm	750mA


L06754-40	40W	3500lm	170xH81mm	145mm	1000mA

FEATURES

The fixing spotlight offer high level of visual comfort, UGR<19. Aluminium die casting material and powder coating. Remote LED driver version. Dimmable. Five different output beams 15/24/36/50° COB LED CRI90 3SDCM AND 90° OSRAM SMD. The metal decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
15W 350mA 20W 500mA 30W 750mA 40W 1000mA
