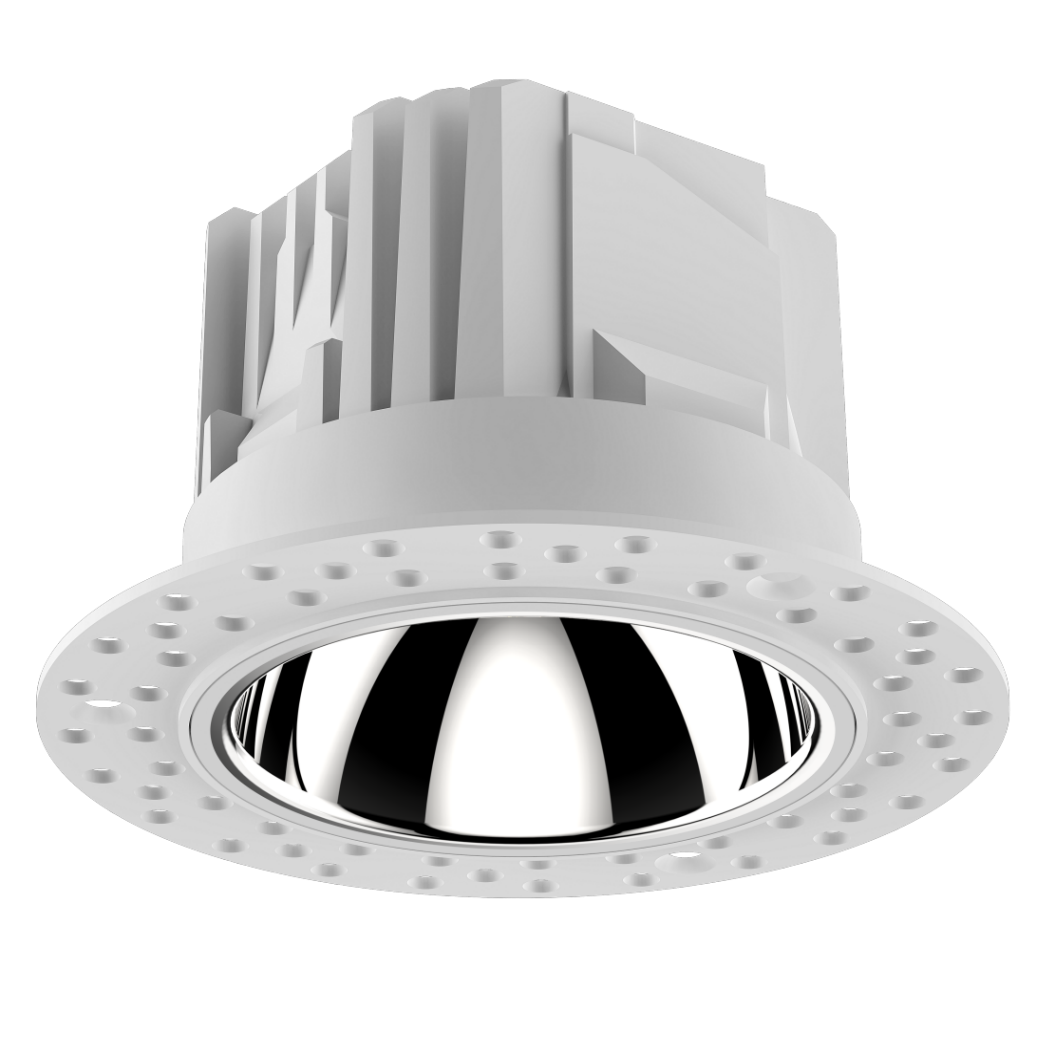

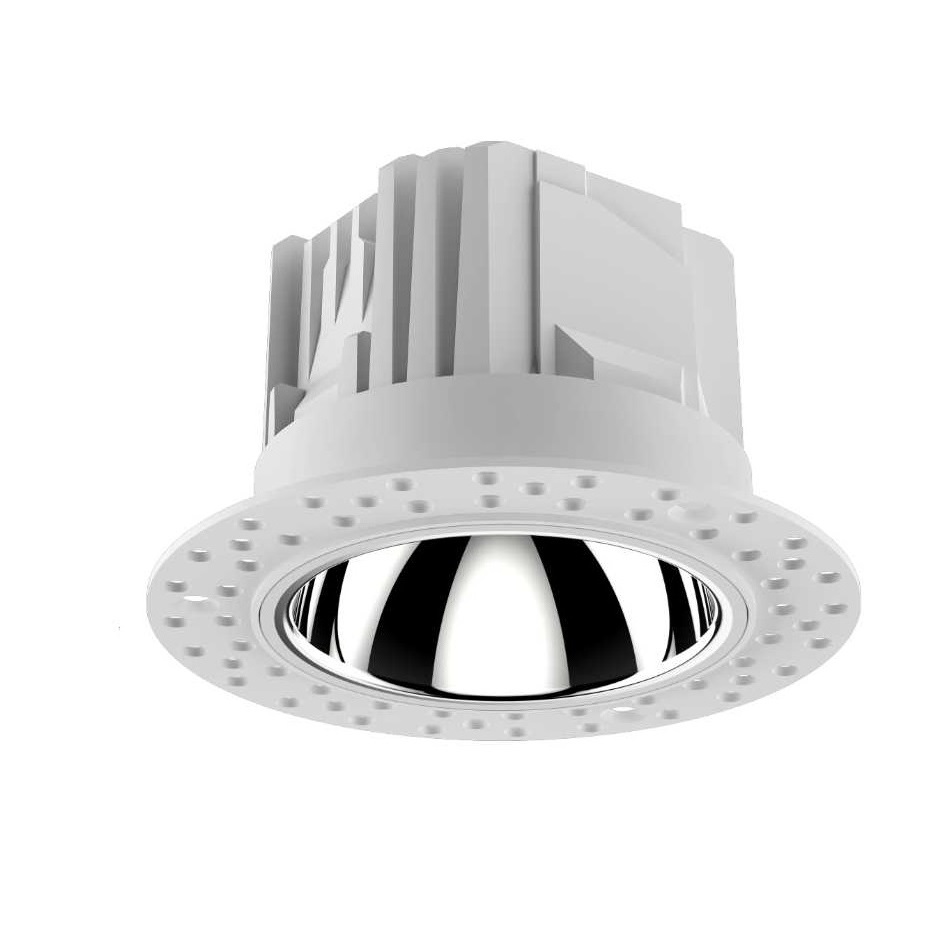

L06755 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing TRIMLESS spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source UGR<19. available for five different output beams 15/24/36/50° AND 90° SMD. The metal decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

900-1300lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I DTW dimming
Ceiling Recessed I Trimless
COB LED CRI90 3SDCM I 90° OSRAM SMD

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06755

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling wall recessed I Trimless

400-600mm cable with quick connector

COB LED 3SDCM I CRI90 I 90° OSRAM SMD

Flicker Free I Remote LED Driver version.

Deeply recessed light source I High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06755-10	10W	900lm	84xH64mm	75mm	250mA


L06755-15	15W	1300lm	84xH64mm	75mm	350mA

FEATURES

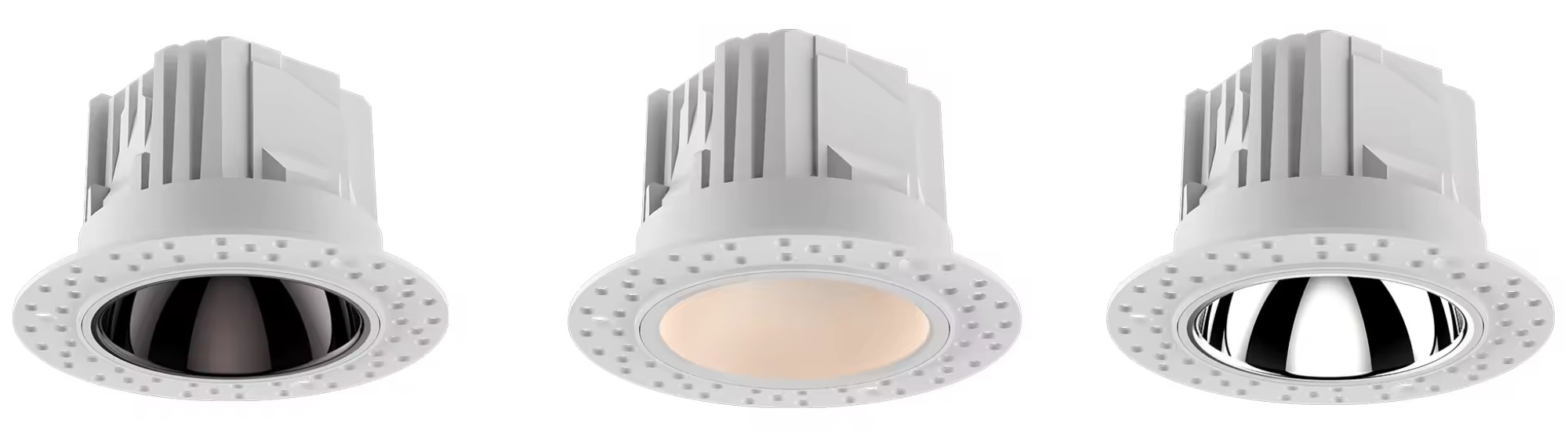

The fixing TRIMLESS spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source UGR<19. available for five different output beams 15/24/36/50° AND 90° SMD. The metal decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 15W 350mA
