Ø40 I Ø50 I Ø60

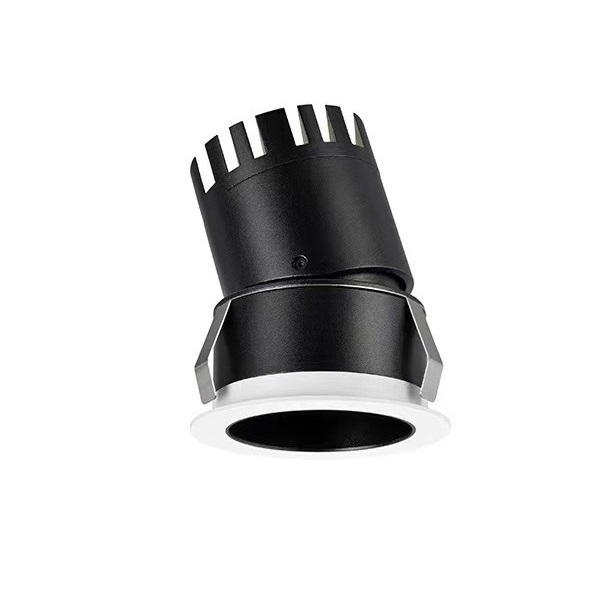

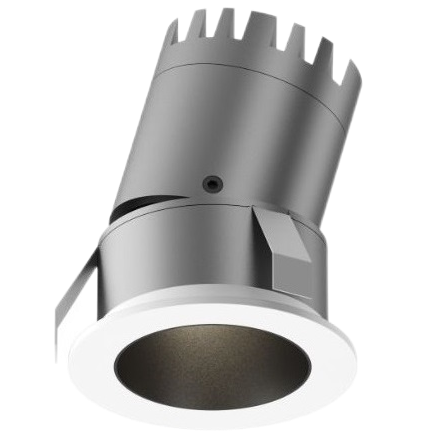

L01011 Spotlight    IP20

Adjustable spotlight, slim trimmed, aluminium material and powder coating. -Romote LED driver version. -Flicker-Free-

A few different optics available. Small dimensions. easy to highlight the beauty. Create your customized light atmosphere ,The variety of lighting elements allows to create different light compositions and scenarios in order to obtain customized lighting effects. Soft light . -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. matching the specific look and feel of your design.

TECHICAL DATA

  • 375-750lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimmable
  • CEILING RECESSED
  • Famous branded LED chips,- CRI90+ Dimmable- CRI<19

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L01011

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

Ceiling thickness 3-20mm

Eyes friendly CE certificate RoHS standard

CRI97 2SDCM CITIZEN COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

MINI SPOT LIGHTING UP EVERY DETAIL CUSTOMIZED LIGHTING EFFECT

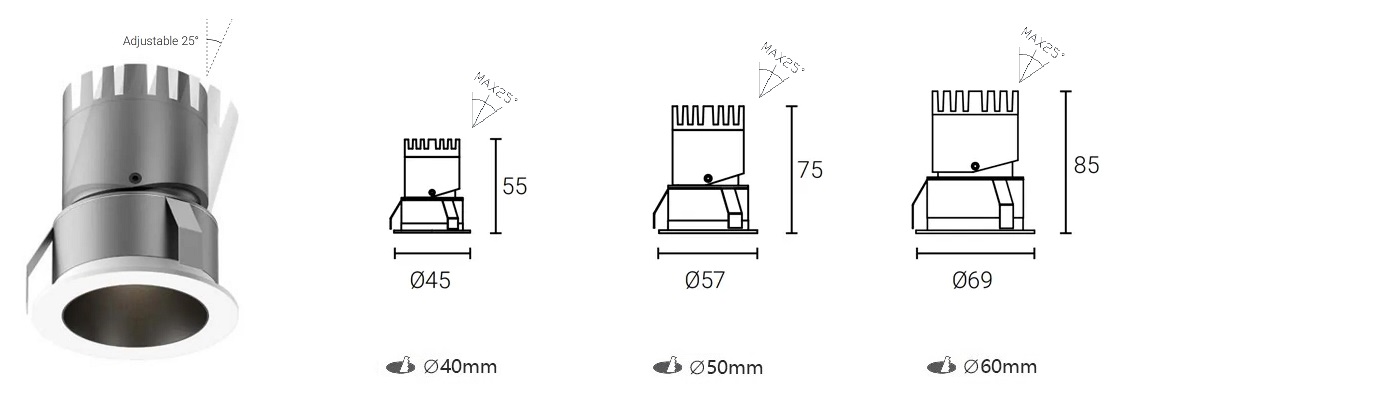

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L01011-5 5W 375lm
45xH50mm
40mm		 125mA
L01011-7 7W 525lm
57xH75mm
50mm		 175mA
L01011-10 10W 750lm
69xH85mm
60mm		 250mA

FEATURES

A few different optics available. Small dimensions. easy to highlight the beauty. Create your customized light atmosphere ,The variety of lighting elements allows to create different light compositions and scenarios in order to obtain customized lighting effects. Soft light . -Uniform distribution. -Specialised optics and optical filters can be ordered.- White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. matching the specific look and feel of your design.

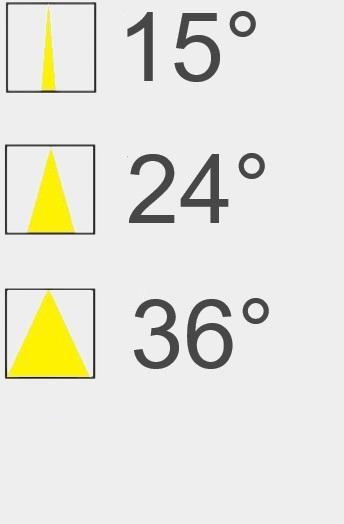

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   125mA
7W   175mA
10W   250mA
