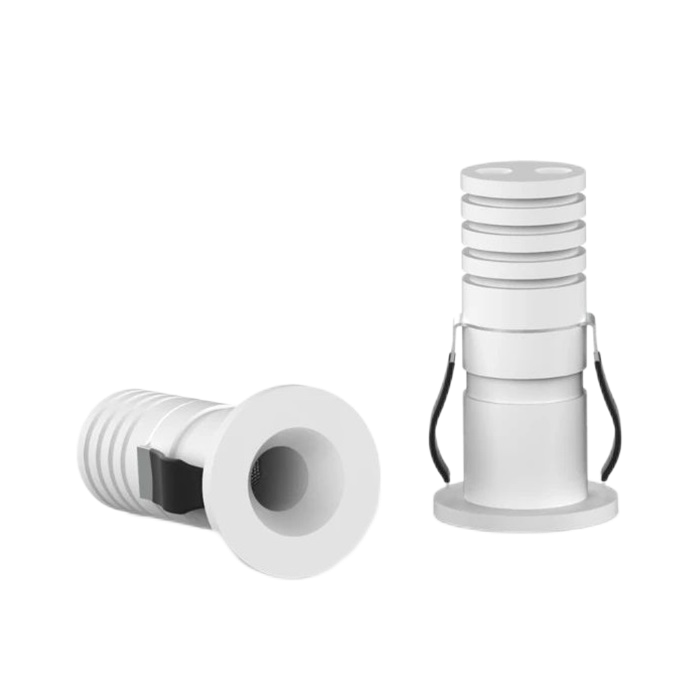

MINI SPOT Ø18

L01001 Spotlight    IP44

Fixing spotlight, Very small dimensions and high performances,slim trimmed, aluminium material. -Romote LED driver version. -Flicker-Free-

Small dimensions. easy to highlight the beauty. Create your customized light atmosphere ,The variety of lighting elements allows to create different light compositions and scenarios in order to obtain customized lighting effects. Soft light . -Uniform distribution. White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. matching the specific look and feel of your design. Series connection, match LED driver V9DC 350-550mA, normally 1 LED Driver to connect 3 spots

TECHICAL DATA

  • 150lm
  • Remote LED Driver
  • Aluminium lighting fixture, electroplating.
  • Flicker Free CRI90+
  • DALI I Triac I 0/1-10V dimmable
  • CEILING RECESSED
  • OSRAM branded LED chips CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L01001

IP44

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

Ceiling thickness 3-20mm

Eyes friendly CE certificate RoHS standard

CRI>90 OSRAM 3535

Triac I 0/1-10V I DALI dimmable

Flicker-Free

Warranty 5 Years

MINI SPOT LIGHTING UP EVERY DETAIL CUSTOMIZED LIGHTING EFFECT

Code System Power
W
Output Lumen
lm

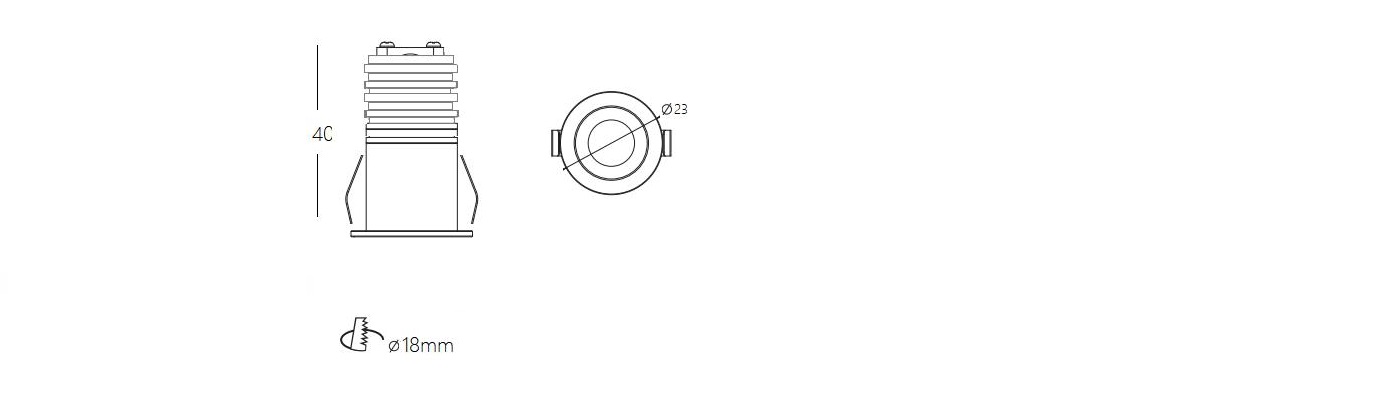

Dimension
mm
Cut Hole
mm
Power Supply
mA
L01001-1.5 1.5W 150lm
22xH41mm
18mm
350mA

FEATURES

Small dimensions. easy to highlight the beauty. Create your customized light atmosphere ,The variety of lighting elements allows to create different light compositions and scenarios in order to obtain customized lighting effects. Soft light . -Uniform distribution. White OR Black color finishing as standard. -- Customized color finishing, power changes are possible depending on the request and the quantity. matching the specific look and feel of your design. Series connection, match LED driver V9DC 350-550mA, normally 1 LED Driver to connect 3 spots,

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
1.5W   350mA
