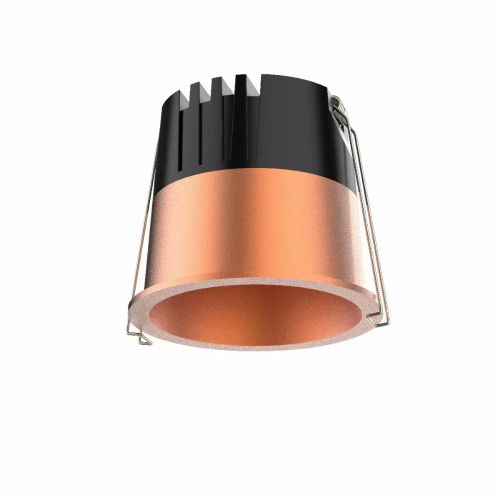

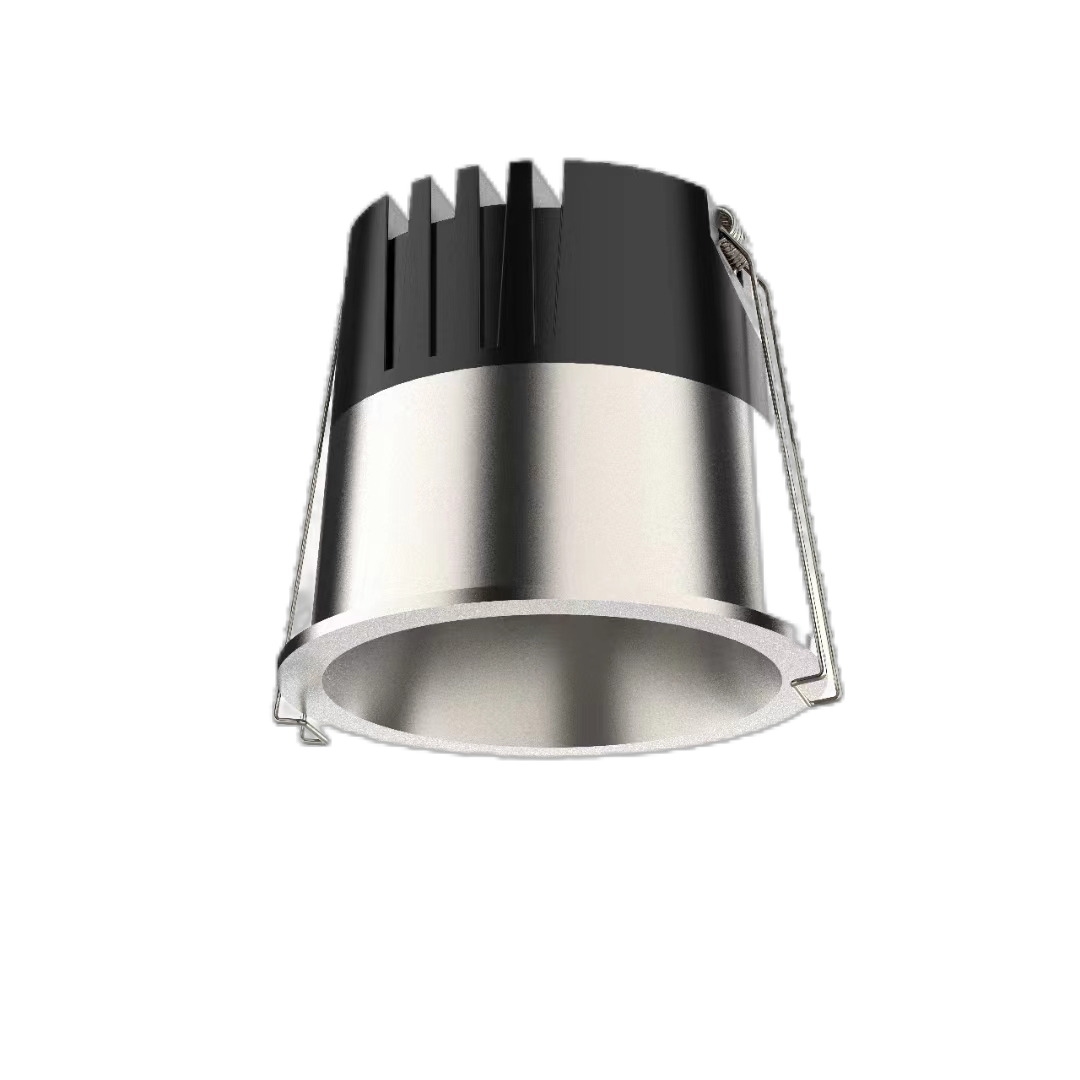

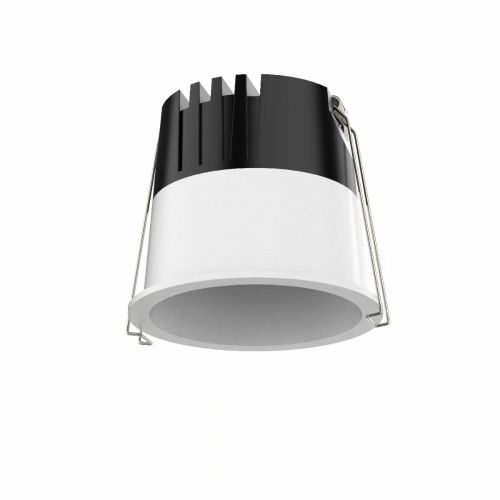

L03620 Spotlight IP44

Aluminium material and lens optic. Remote LED driver version. Dimmable. CRI>90

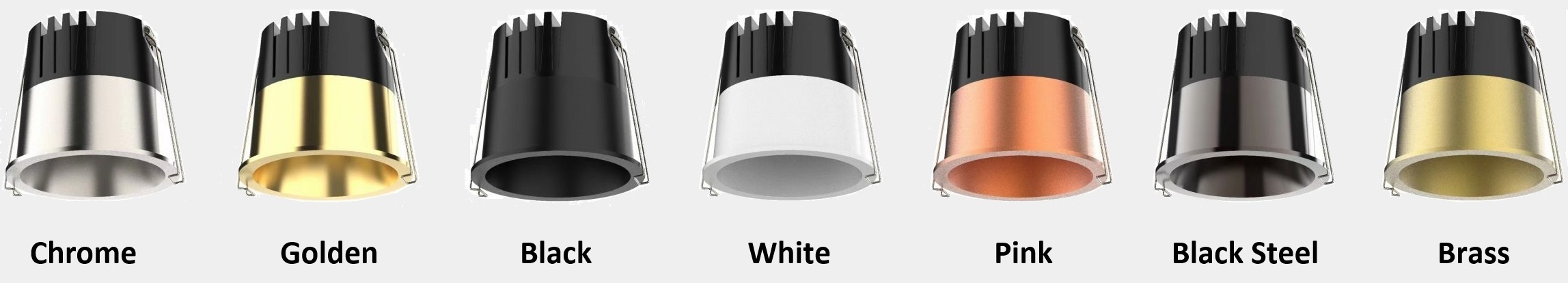

The fixing spotlight with decorative metal baffle and trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors I Electroplating pink I steel black I Bass I chromed. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

450-1600lm
Remote LED Driver
Aluminium lighting fixture,
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03620

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03620-5	5W	450lm	52xH63mm	45mm	150mA


L03620-12	12W	1000lm	62xH63mm	55mm	300mA


L03620-15	15W	1300lm	71xH68mm	65mm	350mA


L03620-18	18W	1600lm	82xH71mm	75mm	450mA

FEATURES

Famous brand COB LED Chips I 3SDCM I High CRI I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify installation I Deeply recessed light source. I High Definition optical lenses in thermoplastic material.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
5W 150mA 12W 300mA 15W 350mA 18W 450mA

Data Sheet
