Ø25 I Ø35 I Ø45

L06773 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort.

The fixing trim spotlight is one of new developments, high level of visual comfort low glare optic with deeply recessed light source. Compact and easy to install, the fixtures are available in trimless and narrow trim options, which not only fit snugly into the ceiling without any abruptness, but also keep the ceiling simple and adaptable to any style. High Definition optical lenses in thermoplastic material. Customized color finishing, power changes are possible depending on the request and the quantity. Specialised optical filters honeycomb can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle available in multiple color finishing, Black I White. Moreover, the IP20 and IP54 rating (7W) on same one luminaries ( IP20 standard, IP54 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimmable - DALI Dimming from 0~100%, down to 0.01%

TECHICAL DATA

  • 350-720lm
  • Remote LED Driver
  • Aluminium material lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V dimming
  • Ceiling, wall recessed. Narrow Trim
  • CRI97 3SDCM

Product is Europe Standard & CE Certificate.

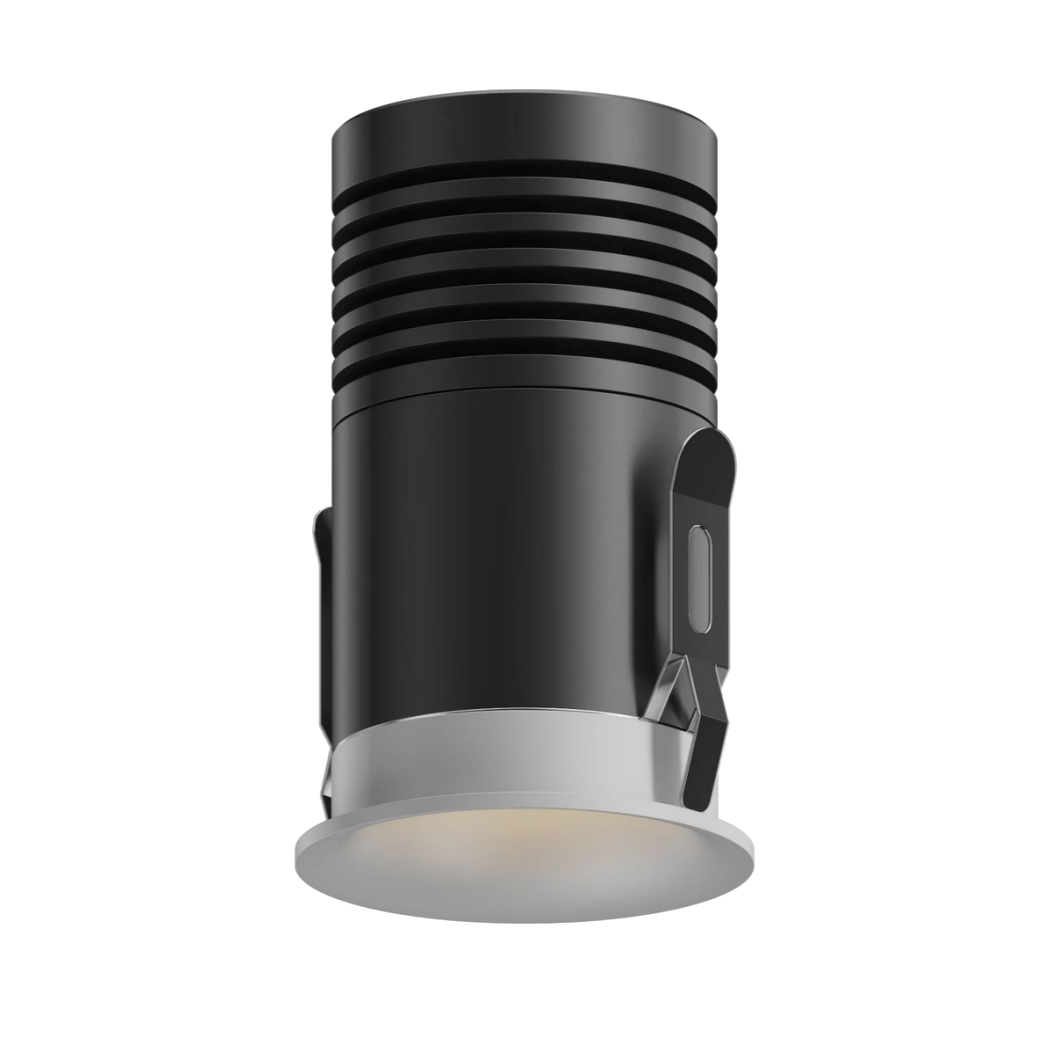

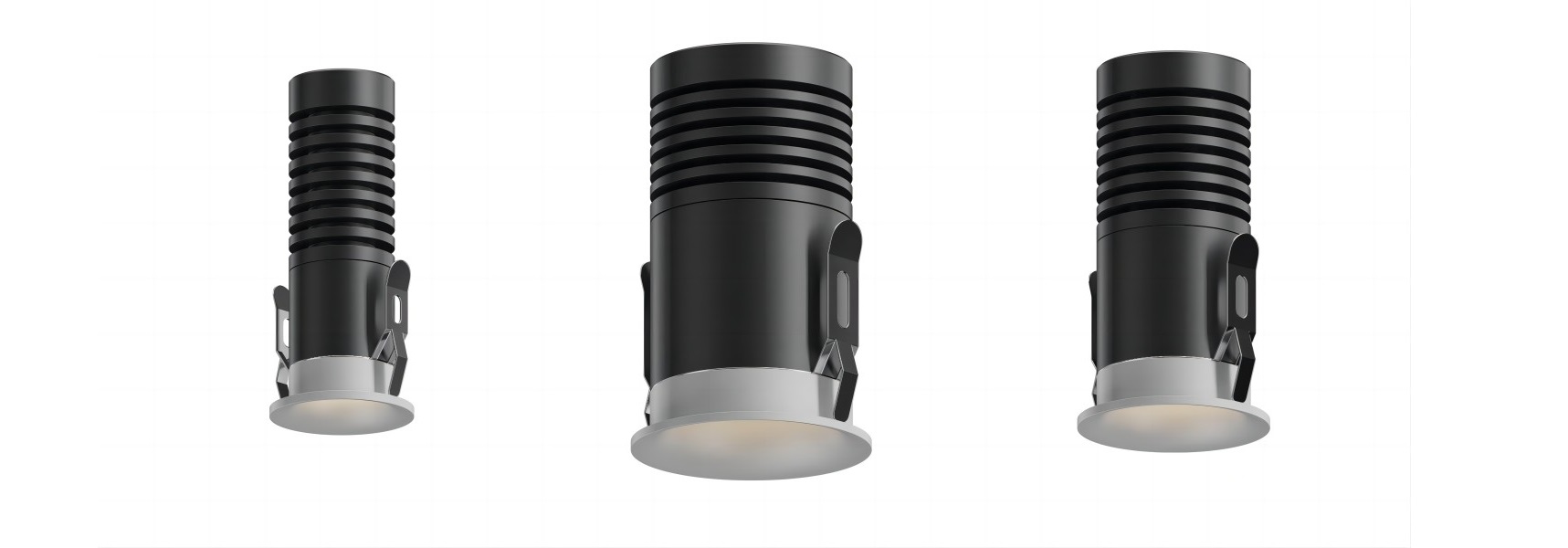

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06773

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling recessed, Narrow Trim

5years warranty

Famous brand COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W
Output Lumen
lm

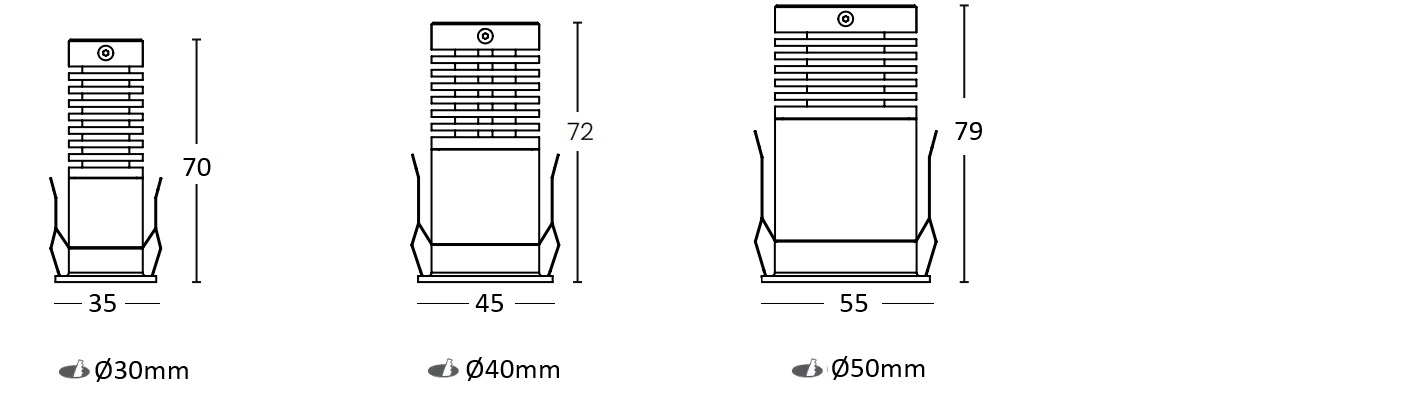

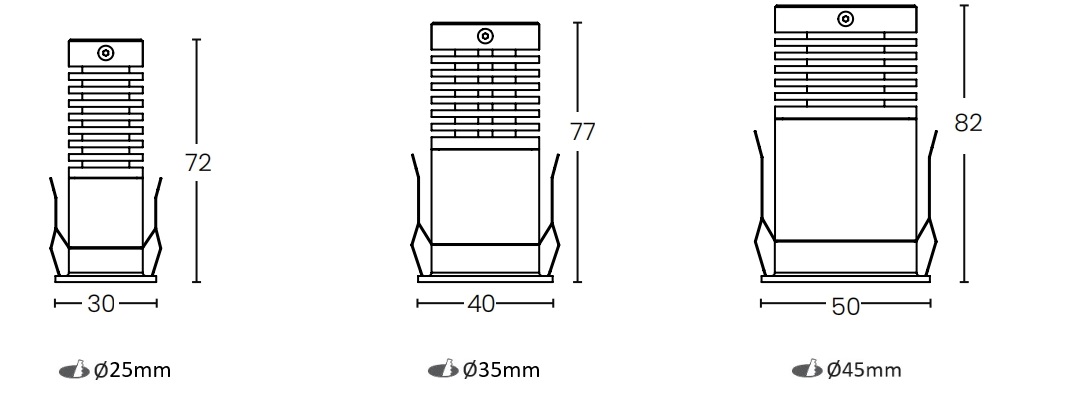

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06773-5 5W 350lm
30xH72mm
35mm
120mA
L06773-7 7W 560lm
40xH77mm
45mm
180mA
L06773-9 9W 720lm
50xH82mm
55mm
250mA

FEATURES

The fixing trim spotlight is one of new developments, high level of visual comfort low glare optic with deeply recessed light source. Compact and easy to install, the fixtures are available in trimless and narrow trim options, which not only fit snugly into the ceiling without any abruptness, but also keep the ceiling simple and adaptable to any style. High Definition optical lenses in thermoplastic material. Customized color finishing, power changes are possible depending on the request and the quantity. Specialised optical filters honeycomb can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle available in multiple color finishing, Black I White. Moreover, the IP20 and IP54 rating (7W) on same one luminaries ( IP20 standard, IP54 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimmable - DALI Dimming from 0~100%, down to 0.01%

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
7W   180mA
9W   250mA
