L08072 Spotlight    IP20

Aluminium material, Flicker-Free, fixing spot light, surface mounted

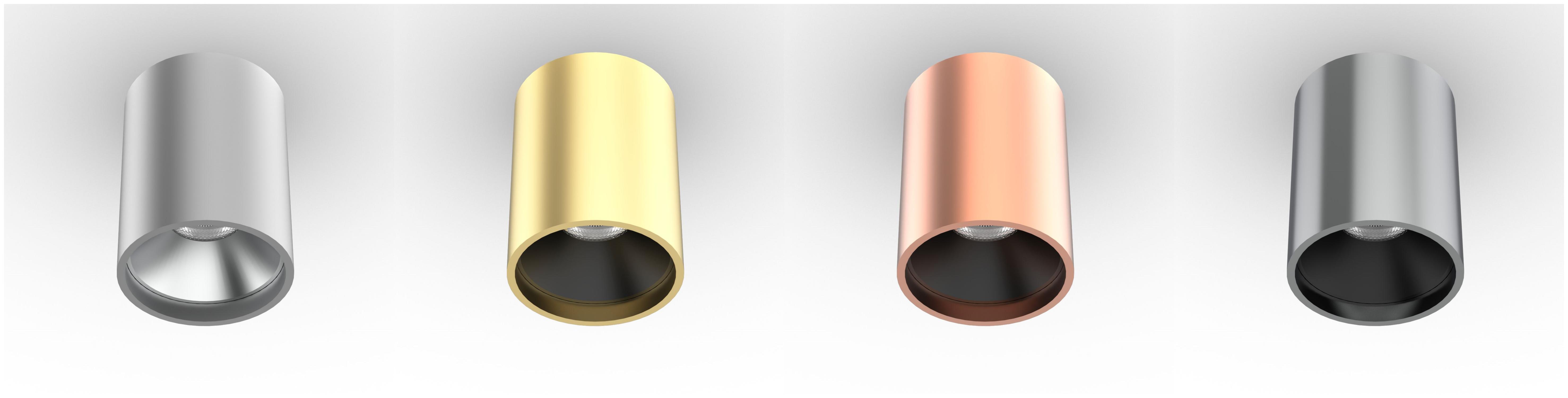

Fixing spotlight .An ideal accent lighting in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances and flexibility for every project metal baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle.High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered. White I Black powder coating, electroplating black I pink I golden I chrome finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. I Ø93xH150mm DALI dimmable I Ø72xH95mm non-dimmable

TECHICAL DATA

  • 850-1050lm
  • Built-in LED Driver
  • Integrated Aluminium lighting fixture,
  • Flicker Free CRI90+ UGR<19
  • non-dimmable
  • Surface Mounted I Pendant
  • Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.


INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L08072

IP20

CLASS III

Surface Mounted I Pendant

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI97 3SDCM CITIZEN COB LED

Europe Standard & CE Certificate. 220-240V 50/60Hz

400-600mm cable with quick connector

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code System Power
W
Output Lumen
lm

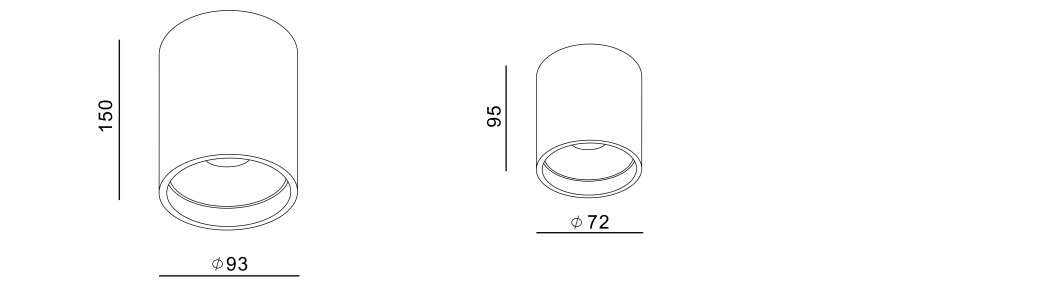

Dimension
mm
Cut Hole
mm
Power Supply
mA
L08072-10 10W 850lm
72xH95mm
mm
250mA
L08072-12 12W 1050lm
93xH150mm
mm
300mA

FEATURES

Fixing spotlight .An ideal accent lighting in residential or commercial. -Because it is deeply recessed, it provides a high level of visual comfort, the high performances and flexibility for every project metal baffle offered anti-glare, -It is presented to its customers as a clean and non-dazzling product. -Realize superior lighting space with a deep cut-off angle.High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialised optics and optical filters can be ordered. White I Black powder coating, electroplating black I pink I golden I chrome finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. I Ø93xH150mm DALI dimmable I Ø72xH95mm non-dimmable

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
12W   300mA
