L09115 Spotlight IP20

Aluminium extrusion material and powder coating. -built in DALI Driver -economical version- Excellent cooling system.5 years warranty.

Double adjustability 90°adjustable 355°rotation, An ideal accent lighting in residential I home or commercial areas. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. The basic model comes in white and black colors.- The metal baffle comes in multiple colors, Black I White I Gold. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design.

TECHICAL DATA

960lm
Built-in LED Driver
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<19

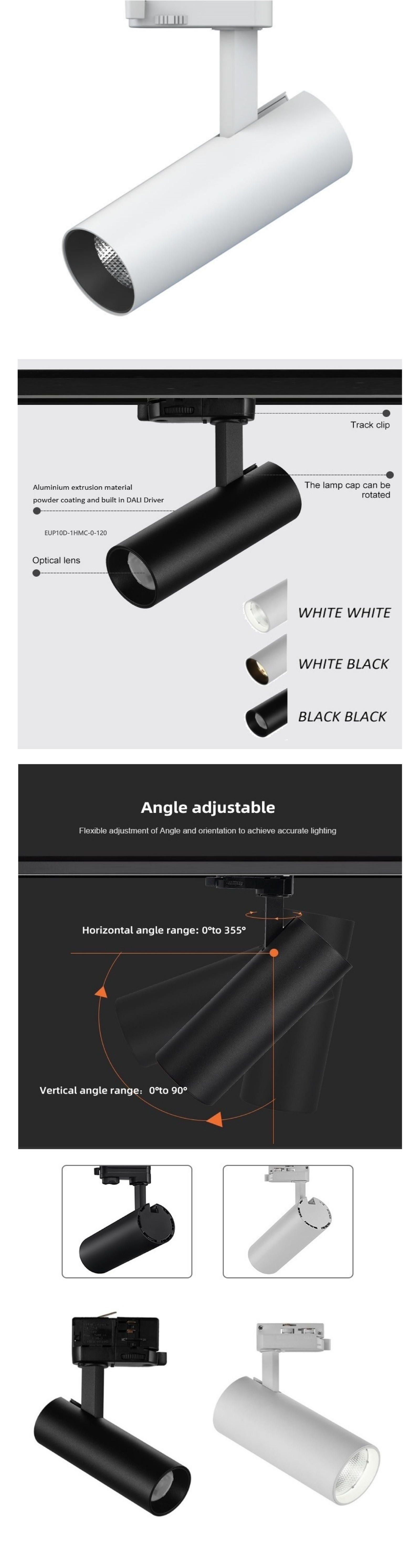

Double adjustability 90°adjustable 355°rotation,
3-phase DALI Track Rails
Famous brand LED chips,- CRI90+ 3steps-Dimmable-

Product is Europe Standard & CE Certificate.

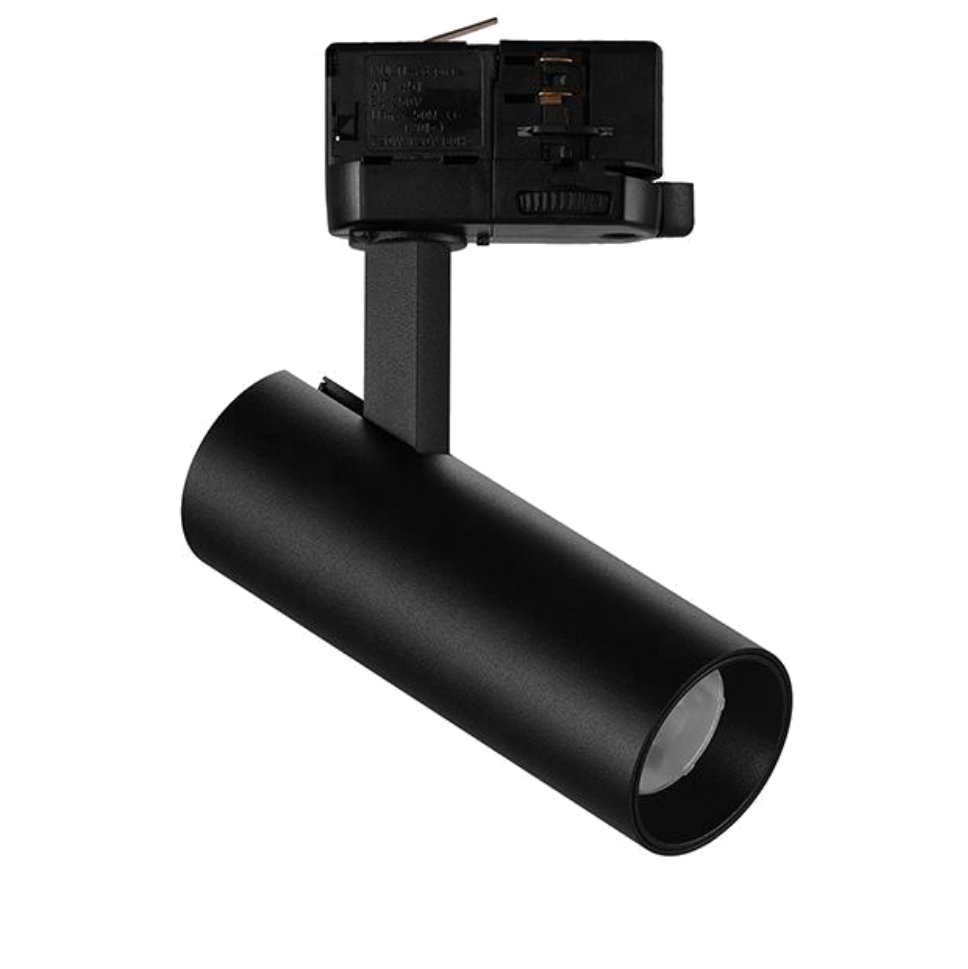

INTERIOR LED TRACK SPOTLIGHT

L09115

IP20

CLASS III

3-phase DALI Track Rails

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium extrusion material and powder coating.

UGR<19 I European Standard.

CRI90 2-3SDCM Famous brand COB LED

DALI dimmable I Flicker Free

Double adjustability 90°adjustable 355°rotation

Warranty 5 Years

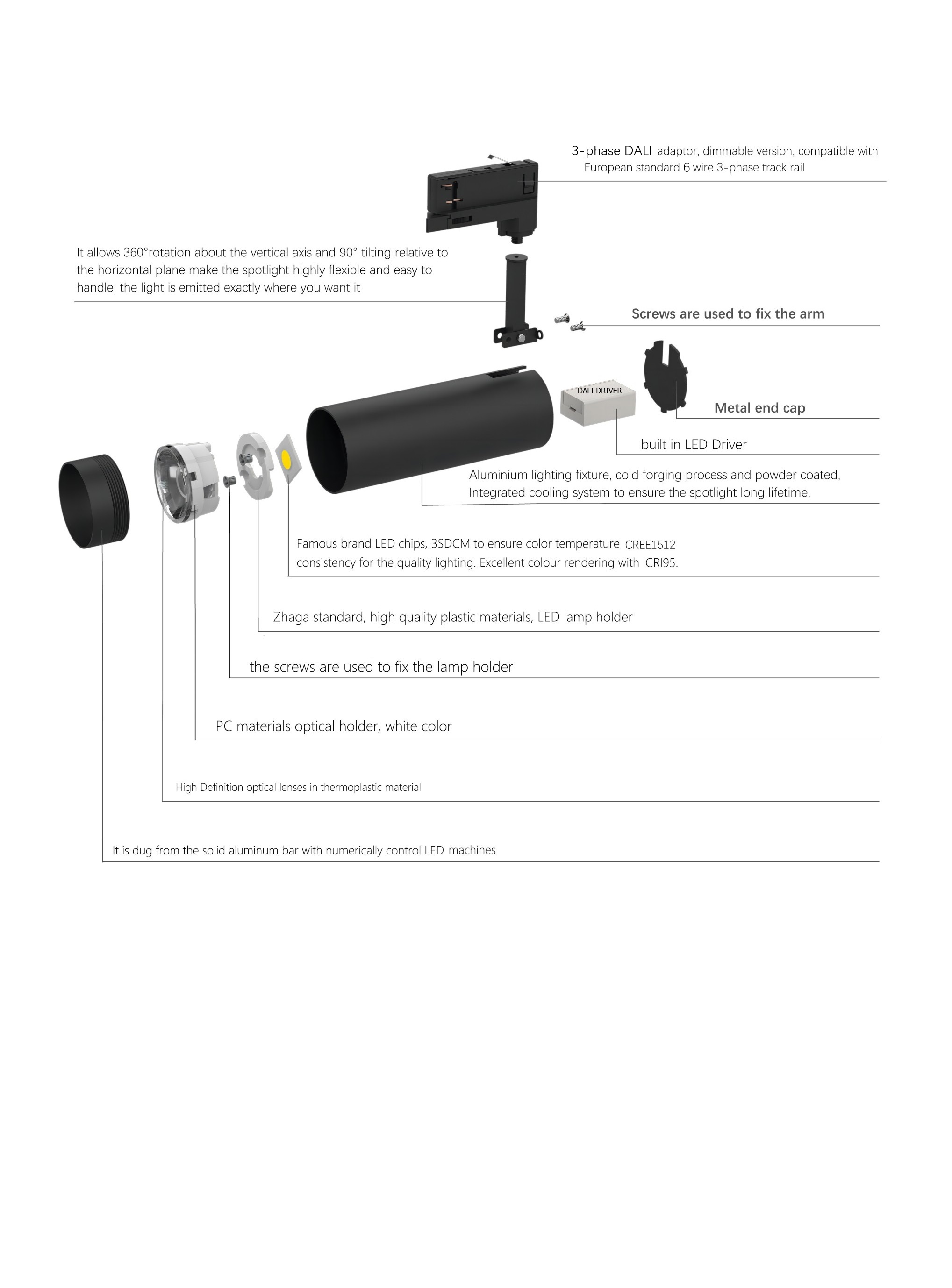

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

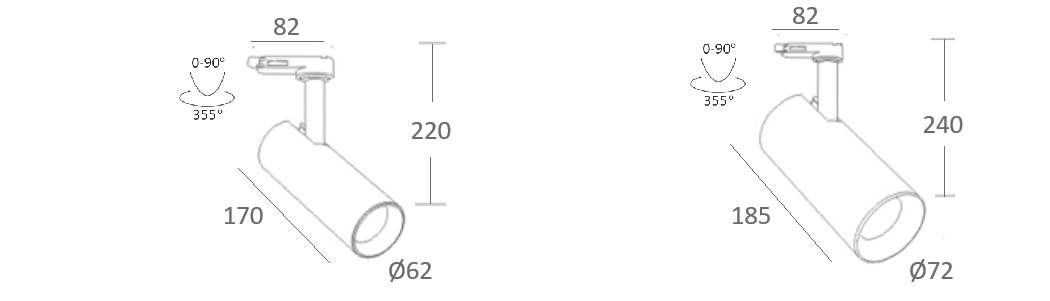

L09115-11.5	11.5W	960lm	62xH170mm	mm	270mA

FEATURES

Aluminium extrusion material and powder coating. -built in DALI Driver -economical version- Excellent cooling system.5 years warranty. Double adjustability 90°adjustable 355°rotation, An ideal accent lighting in residential I Villa or commercial areas. High Definition optical lenses in thermoplastic material. -Uniform distribution. -Specialized optics( reflector ) and optical filters can be ordered.-The basic model comes in white and black colors.- The metal baffle comes in multiple colors, Black I White I Gold. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design.
