2-30W I Fixed

L06057 Spotlight    IP20

Die-cast aluminum and thermoplastic

Linear recessed luminaire with LED lamps - fixed optics - a few beam angle for option. Despite the ultra compact size of the product. the technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Version with perimeter frameless. it's easy to take the spotlight out from its frame. OSRAM LED, High CRI. DIMMABLE

TECHICAL DATA

  • 70-1500lm
  • Remote LED Driver
  • Aluminium die casting material lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. Trimless
  • CRI90+ OSRAM LED

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06057

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium Die casting material and powder coating.

Ceiling recessed, Trimless

5years warranty

OSRAM LED3030 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI dimmable

UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L06057-2 2W 70lm
91x38xH49mm
42x41mm		 600mA
L06057-4 4W 200lm
91x69xH49mm
72x41mm		 600mA
L06057-10 10W 550lm
141x72xH49mm
145x41mm		 600mA
L06057-20 20W 1100lm
274x72xH49mm
277x41mm		 600mA
L06057-30 30W 1500lm
406x72xH49mm
410x41mm		 600mA

FEATURES

Linear recessed luminaire with LED lamps - fixed optics - a few beam angle for option. Despite the ultra compact size of the product. the technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Version with perimeter frameless. it's easy to take the spotlight out from its frame. OSRAM LED, High CRI. DIMMABLE

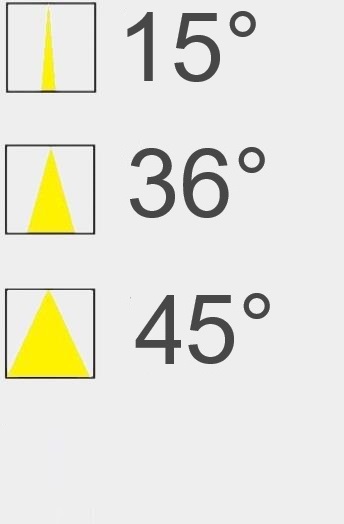

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
4W   600mA
10W   600mA
20W   600mA
30W   600mA
