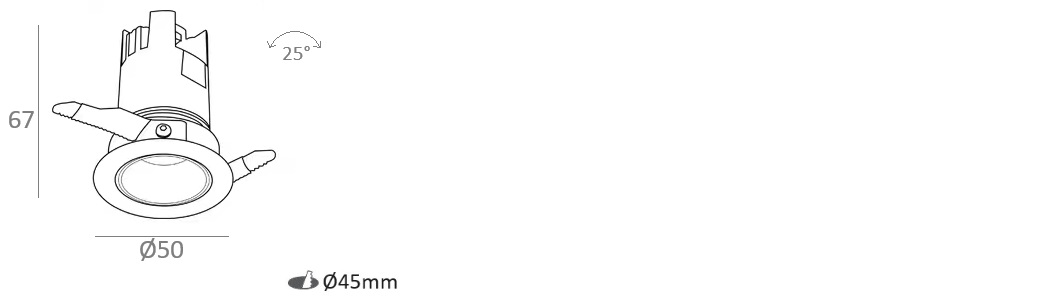

Ø45 adjustable

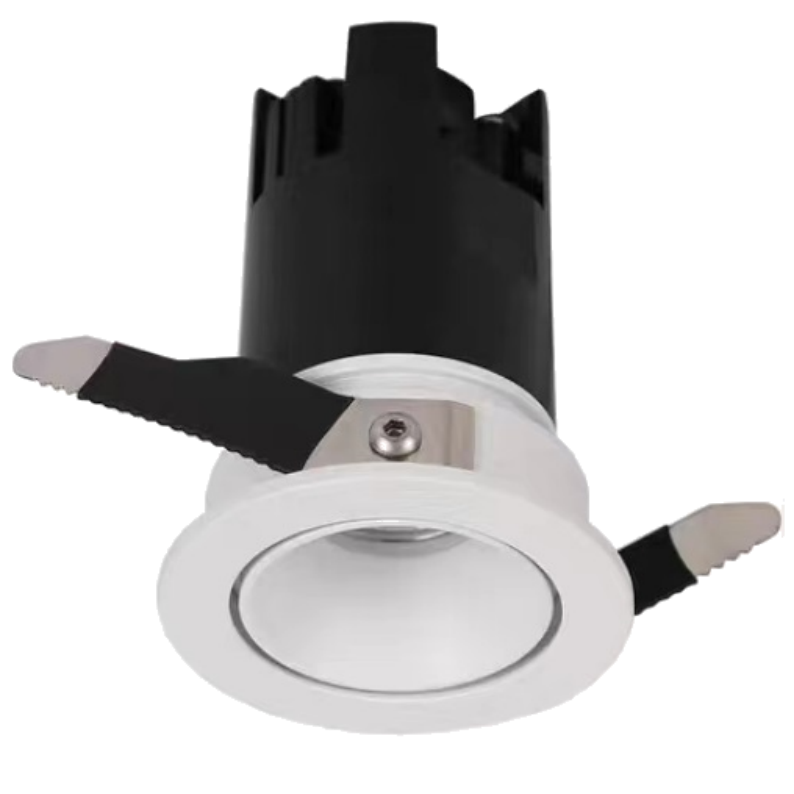

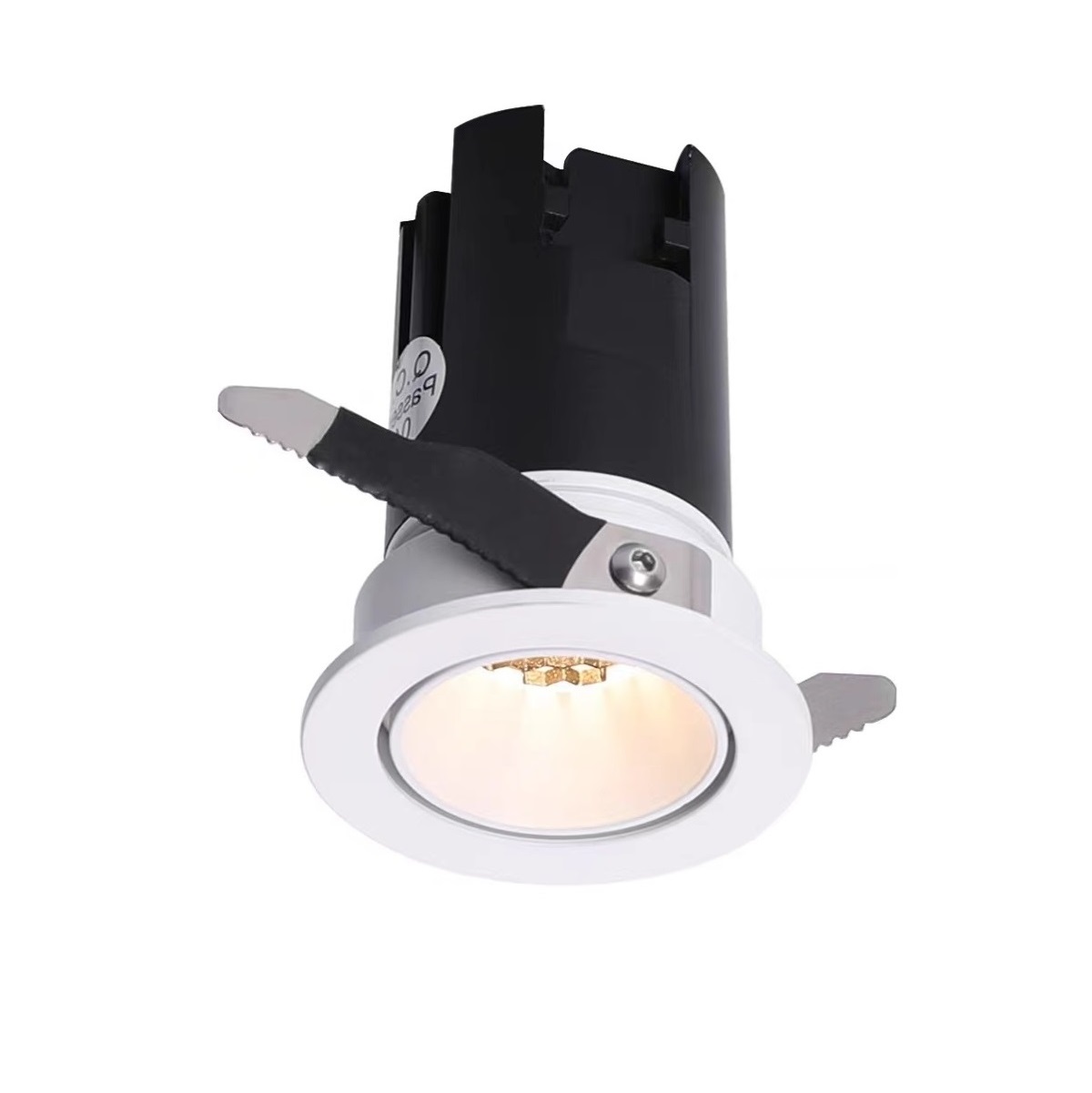

L03736 Spotlight    IP20

Aluminium Die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

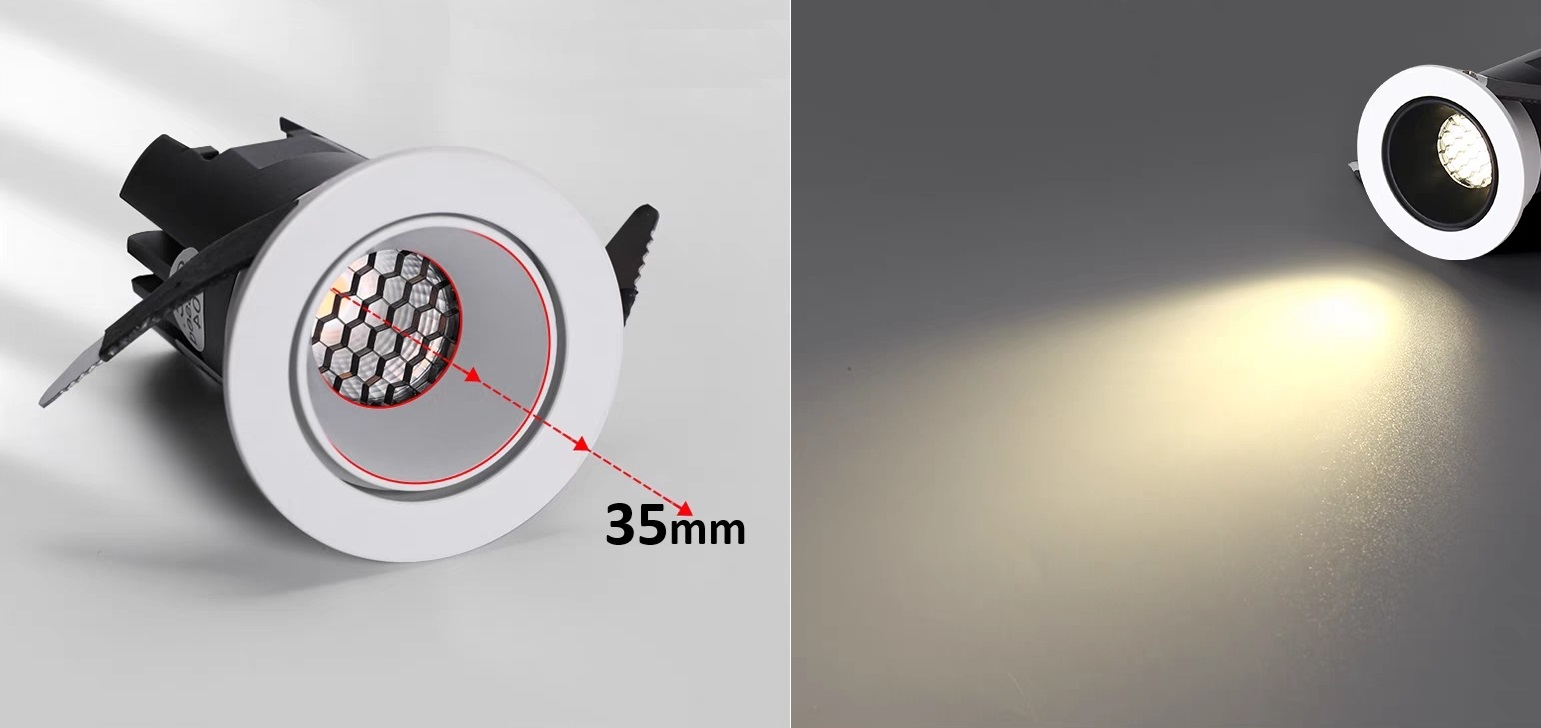

The 25° adjustable spotlight offered uniform distribution . Visual comfort low glare optic with recessed light source. available for two different output beams 24/36°. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Metal baffle is available in multiple color finishing, Black I White I Pink I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 400-500lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • Adjustable Spotlight
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L03736

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium materials lighting fixture, powder coated.

Ceiling Recessed I Adjustable

300-400mm cable with quick connector.

COB LED CRI90 3SDCM

Flicker Free I Remote LED Driver version.

Recessed light source. Visual comfort

DALI I Triac I 0/1-10V I DTW dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03736-5 5W 400lm
50×H67mm
45mm
120mA
L03736-7 7W 500lm
50×H67mm
45mm
180mA

FEATURES

The 25° adjustable spotlight offered uniform distribution . Visual comfort low glare optic with recessed light source. available for two different output beams 24/36°. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Metal baffle is available in multiple color finishing, Black I White I Pink I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
7W   180mA
