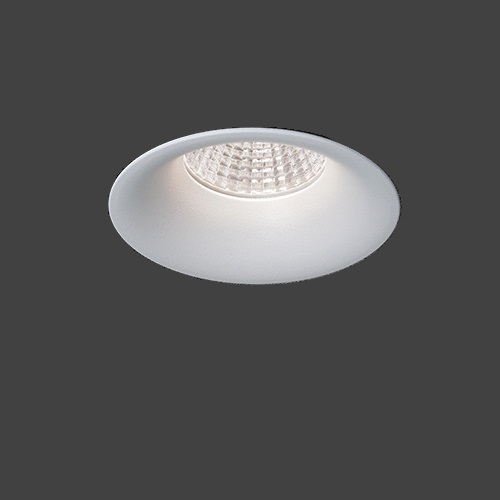

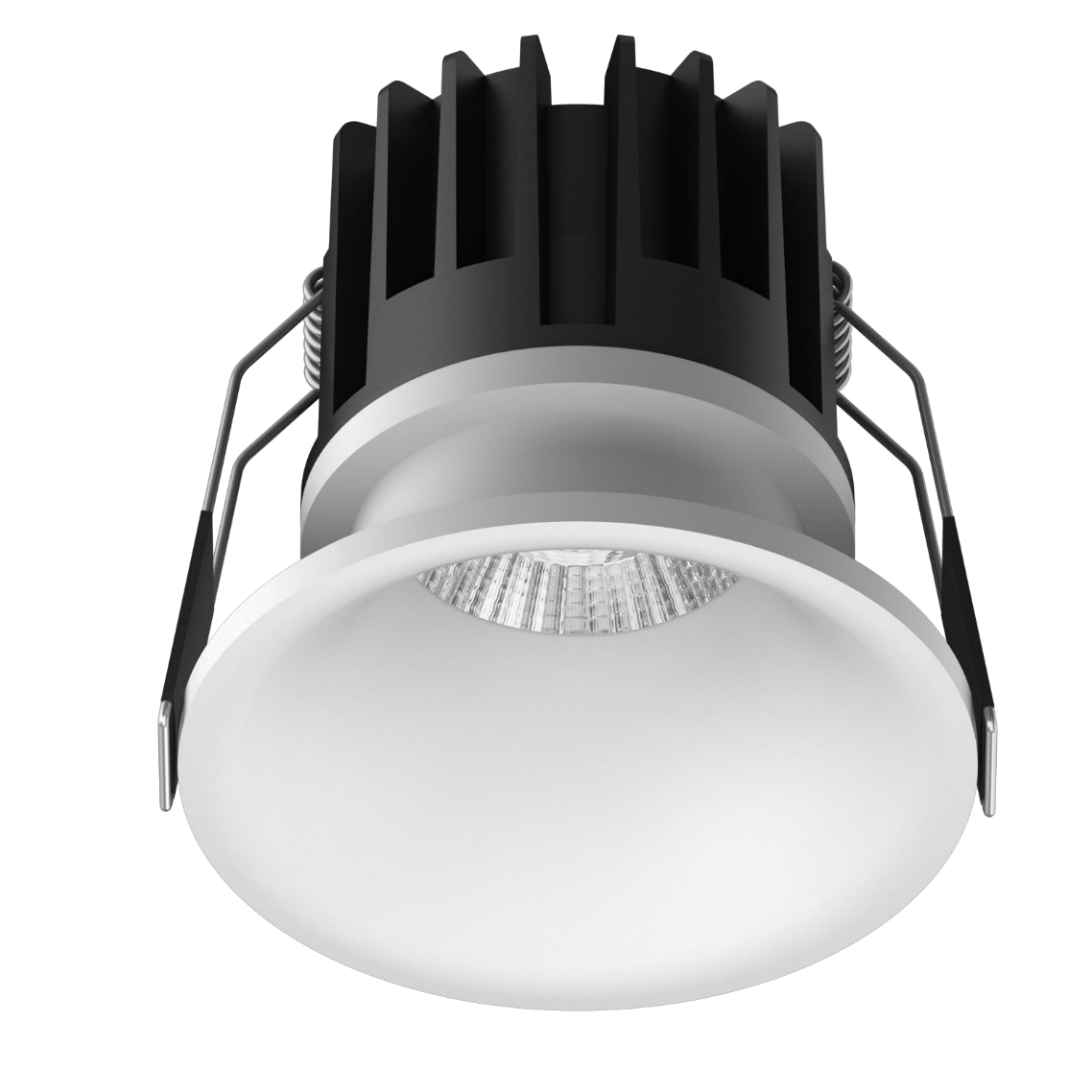

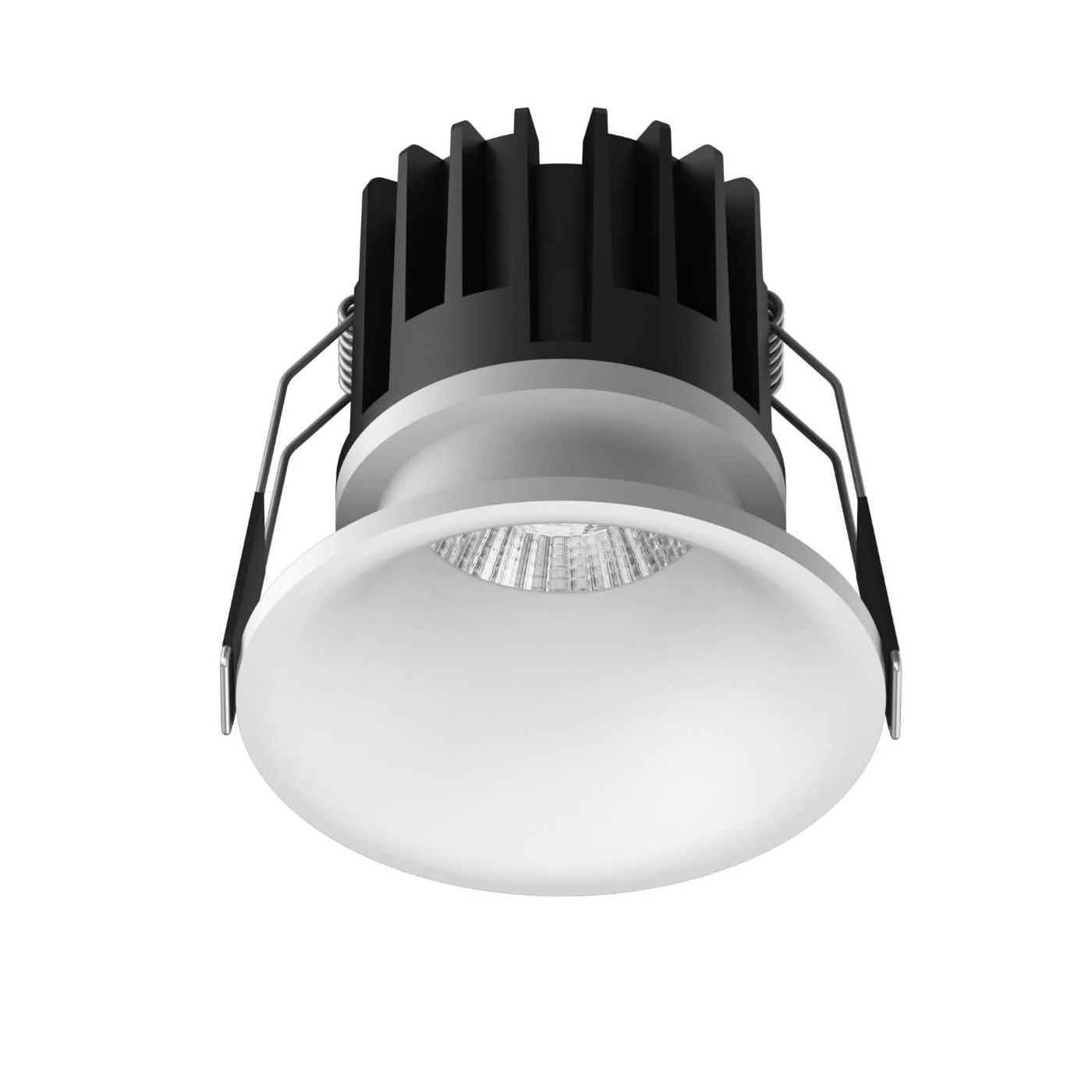

L03103 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort.

The fixing trim spotlight is one of new developments, high level of visual comfort low glare optic with deeply recessed light source. Compact and easy to install, narrow trim options, which not only fit snugly into the ceiling without any abruptness, but also keep the ceiling simple and adaptable to any style. High Definition optical lenses. Customized color finishing, power changes are possible depending on the request and the quantity. Specialized optical filters honeycomb can be ordered. 5years warranty. The metal baffle comes in Black I White. Moreover, the IP20 and IP54 rating on same one luminaries ( IP20 standard, IP54 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimmable - DALI Dimming from 0~100%, down to 0.01%

TECHICAL DATA

800-960lm
Remote LED Driver
Aluminium die casting material lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V dimming
Ceiling, wall recessed. Narrow Trim
CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03103

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating.

Ceiling recessed, Narrow Trim

5years warranty

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI TW dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

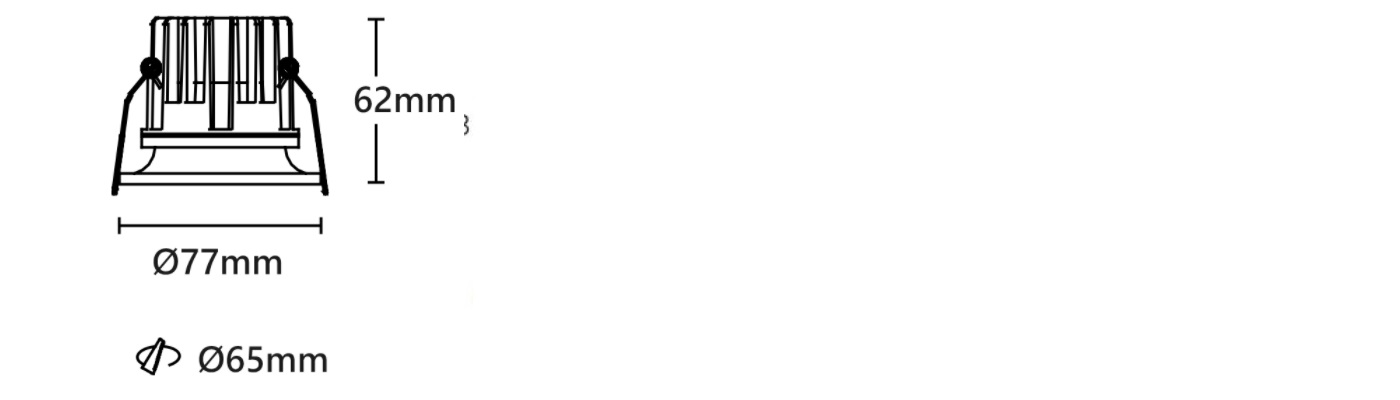

L03103-9	9W	800lm	77xH62mm	65mm	200mA


L03103-12	12W	960lm	77xH62mm	65mm	300mA

FEATURES

The fixing trim spotlight is one of new developments, high level of visual comfort low glare optic with deeply recessed light source. Compact and easy to install, narrow trim options, which not only fit snugly into the ceiling without any abruptness, but also keep the ceiling simple and adaptable to any style. High Definition optical lenses. Customized color finishing, power changes are possible depending on the request and the quantity. Specialized optical filters honeycomb can be ordered. 5years warranty. The metal baffle comes in Black I White. Moreover, the IP20 and IP54 rating on same one luminaries ( IP20 standard, IP54 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations. Dimmable - DALI Dimming from 0~100%, down to 0.01%

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
9W 200mA 12W 300mA
